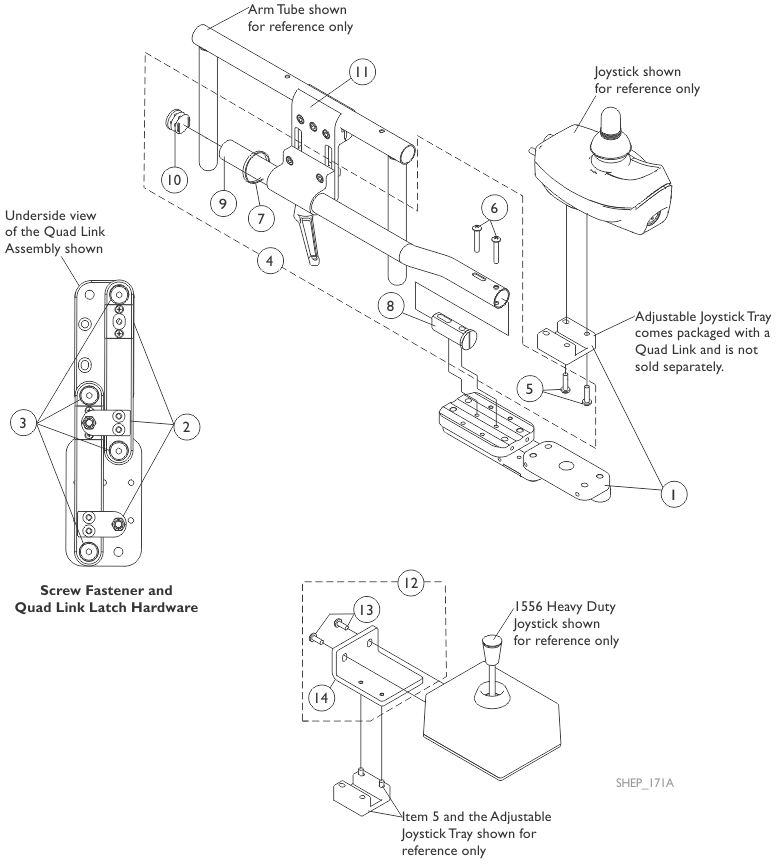

Electronics - Quad Link (QLA) After 4/06/06

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1140896

Quad Link w/ Adjustable Joystick Tray (QLA) and Instruction Sheet - Right

$305.00

Create/add to Wishlist

1140897

Quad Link w/ Adjustable Joystick Tray (QLA) and Instruction Sheet - Left

$305.00

Create/add to Wishlist

1140425

Kit, Quad Link Latch Hardware

$69.00

Create/add to Wishlist

1140424

NLA - Kit, Quad Link Screw Fastener Hardware

N/A

Create/add to Wishlist

1139416

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Tie Wrap (11-1/2" L)	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
9	Tube, Joystick Offset (1/2")	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
8	Spacer, Joystick Tube, Black	1	1
8	Spacer, Joystick Tube, Black	1	1
7	Tie Wrap (11-1/2" L)	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
5	Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")	1	2
6	Screw, Phillips Pan Head (#10-32 x 1-1/8")	1	2
7	Tie Wrap (11-1/2" L)	1	1
8	Spacer, Joystick Tube, Black	1	1
9	Tube, Joystick Offset (1/2")	1	1
10	Plug Button, Black (7/8")	1	1

Kit, ASBA/ADJASBA Quad Link Mounting Hardware

$32.00

C ,C1

Create/add to Wishlist

1105414

Screw, Phillips Pan Head w/ Patch (#10-32 x 3/4")

$10.00

Create/add to Wishlist

1139422

Clamp, Height Adjustable Joystick Tube (ARM250)

$91.00

Create/add to Wishlist

1139925

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
24	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
25	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1
13	Screw, Phillips Pan Head (#10-32 x 1/2")	1	2
14	NLA - Plate, 1556 HD Joystick Quad Link	1	1

NLA - Kit, 1556 Heavy Duty Joystick To Quad Link Mounting Hardware

N/A

Create/add to Wishlist

1134844

Instruction Sheet, Quad Link

$13.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Latch Kit includes 4 ea. Button Head Cap Screws (10-32 x 3/8"), 2 ea. Latch Spring Assembly, 4 ea. Phillips Flat C'Sunk Head Screws, 2 ea. Spring Catch Plates, 2 ea. Socket Head Set Screws (10-32 x 3/8")
B	Screw Fastener Kit includes 4 ea. Socket Head Shoulder Screws (3/8 x 3/8"), 2 ea. Socket Head Cap Screws (1/4-20 x 3/8"), 2 ea. Socket Head Set Screws (1/4-20 x 1/2"), 4 ea. Socket Head Set Screws (10-32 x 1/8")
C	Includes items 5-10. The Quad Link Mounting Hardware accommodates MKIV RII, RX, A, A+, PSF/PSR joysticks.
C1	When ordering the Quad Link for the first time, Additional hardware is required for 1556 Heavy Duty joystick. See pictorial for reference.
D	Includes items 13 and 14
E	Not Shown
F	Individual components are non-saleable
G	When a Single Function Toggle Switch (SFT) is used, the (SFT) switch mounting hardware for a Joystick Tube will need to ordered
