Arms - Captain Seat & Hardware (20" & 22" W)

Print this page

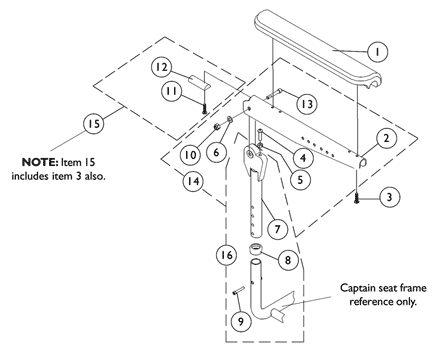

Captain Seat Arms and Hardware - 20

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1117328	Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)	1	2	$66.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1101912	NLA - Plate, Armrest	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1028755	Screw, Phillips Pan Head (#10-32 x 5/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1009837	Screw, Socket Button Head (1/4-20 x 1")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1025711	NLA - Nut, Hex (1/4-20)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1101914	NLA - Tube, Arm, Upper Adjustable, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1101110	NLA - Anti-Rattle	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1038379	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026906	NLA - Locknut (5/16-24)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1102546	NLA - Screw, Phillips Pan Head (#10-32 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1101634	NLA - Insert, Armrest, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1031026	Screw w/ Lug (5/16-24 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1101917	NLA - Hardware, Armrest Attaching (Pair)	2	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1101916	NLA - Hardware, Arm Pad Attaching (Pair)	2	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1101915	NLA - Arm Tube Assembly, Upper Adjustable (Pair)	2	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs for chairs manufactured before 1/3/02.
B	Includes items 2, 4, 5, 6, 10, 13
C	Includes items 3, 11, 12
D	Includes items 7-9

Catalog Literature

Parts Books for Arrow® FWD
