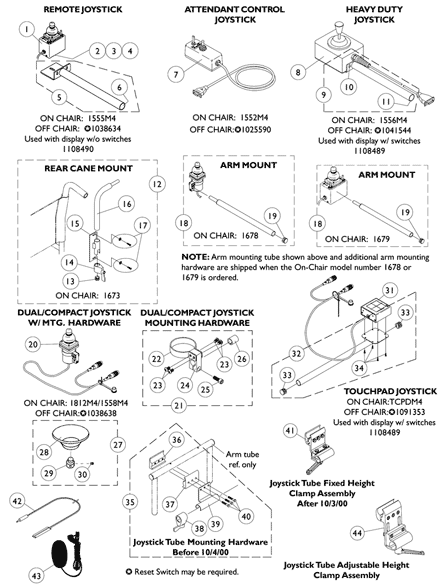

Electronics - MKIV Joystick Options
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes the joystick tube and items 10 and 11 |
| B | Includes items 13-17 |
| C | For On-Chair model numbers 1678 and 1679. Includes the joystick tube and item 19 |
| D | Includes items 22-26 |
| E | Includes items 28-30 |
| F | Includes the joystick tube, items 33 and 34 |
| G | Before 10/4/00 and includes items 36-40 |
| H | After 10/3/00. Individual components are non-saleable. Can be used as a direct replacement in the field for the Joystick Tube Mounting Hardware part number 1049591. |
| I | Before 5/24/04 |
| J | After 5/23/04. The Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch |
| K | Not Shown and used with the Remote Joystick |
| L | Not Shown and used with the Heavy Duty and Touch Pad Joystick |
| M | Can be used to replace a Fixed Height Joystick Tube Clamp in the field. |
| N | No longer available as a service part in the field. |
| O | Part #1017612 is no longer available as a service part individually. Order item #27 as a replacement. |
