Electronics - MKIV Displays

Print this page

Click to Enlarge

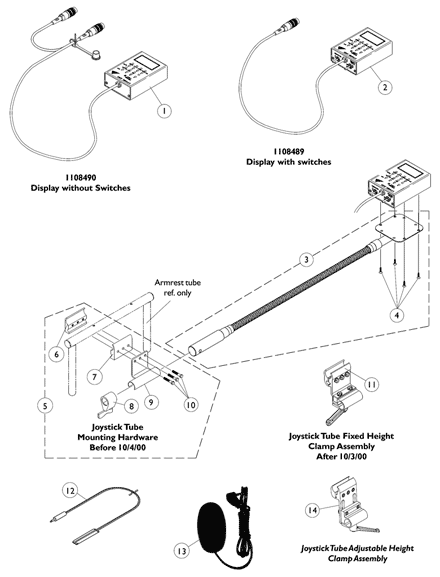

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1108490	NLA - Display without Switches	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1108489	Display with Switches	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1049594	NLA - Tube, Flex with Screws	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930339	NLA - Package, Screw, Phillips Pan Head (#4-40 x 3/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1049591	NLA - Hardware, Joystick Tube Mounting	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1027267	NLA - Half Clamp, Threaded Holes	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1027266	Half Clamp, Non-Threaded Holes	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1027274	Adjustment Lock Assemnbly, Black	1	1	$49.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1049582	NLA - Bracket, Joystick Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	16690X004	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1093071	Clamp, Fixed Height Joystick Tube	1	1	$29.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1020818	Switch, Red Flex Ribbon (Tape) Reset	1	1	$177.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1123276	Kit, Switch, Black Egg Reset w/ Hook/Loop Adhesive Back Fastener & Attaching Screws (EGSBLK)	1	1	$96.00	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1139422	Clamp, Height Adjustable Joystick Tube (ARM250)	1	1	$91.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes the Flex Tube and item 4
B	Before 10/4/00 and includes items 6-10
C	After 10/3/00 and can be used as a direct replacement for the Joystick Tube Mounting Hardware part number 1049591 in the field
D	Before 5/24/04
E	After 5/23/04 the Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch

Catalog Literature

Parts Books for Pronto® R2™, Ranger II™ MWD for WSBT (After 2/29/2000)
