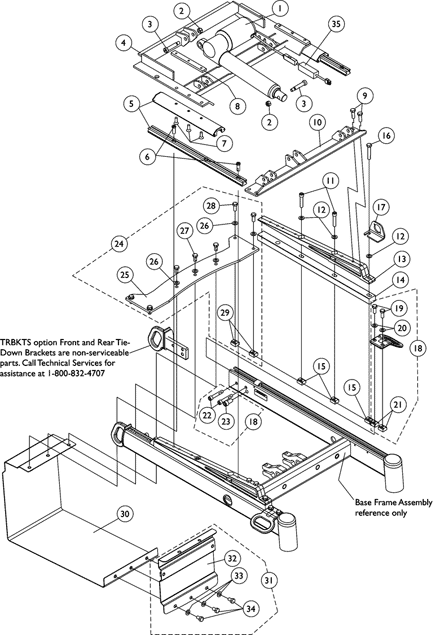

Frame - Base Interface w/ TRBKTS Option - Includes Tilt Actuator - 2GT/2GTR - RWD

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1082778

NLA - Actuator Motor Assembly, Tilt

N/A

Create/add to Wishlist

1026158

Locknut (5/16-18)

$9.20

Create/add to Wishlist

1031665

Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)

$8.00

Create/add to Wishlist

1082873

NLA - Pivot Assembly, Rear

N/A

Create/add to Wishlist

1082760

NLA - Guidance Assembly, Linear

N/A

Create/add to Wishlist

1117326

NLA - Screw, Socket Head w/ Patch (5/16-18 x 7/8")

N/A

Create/add to Wishlist

1091869

NLA - Screw, Socket Flat Head w/ Patch (1/4-20 x 3/4")

N/A

Create/add to Wishlist

1082877

NLA - Bar, Clamp, Black

N/A

Create/add to Wishlist

1070462

NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")

N/A

Create/add to Wishlist

1082872

NLA - Bracket, Pivot, Front, Black

N/A

Create/add to Wishlist

1021344

Screw, Socket Head (5/16-18 x 1-1/2")

$8.00

Create/add to Wishlist

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

$7.20

Create/add to Wishlist

1082880

NLA - Support, Seat

N/A

Create/add to Wishlist

1140342

Spacer, Seat Support Mounting, Black

Create/add to Wishlist

1069724

T-Nut (5/16-18)

$12.00

Create/add to Wishlist

1043627

NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")

N/A

Create/add to Wishlist

1070430

NLA - Bracket, Charger Connector, Black

N/A

Create/add to Wishlist

1140259

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
9	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
10	T-Nut (5/16-18)	1	4
11	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
12	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
13	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
14	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
15	T-Nut (5/16-18)	1	4
16	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
17	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
19	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
20	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
21	T-Nut (5/16-18)	1	4
22	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
23	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
14	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
15	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
16	T-Nut (5/16-18)	1	4
17	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
18	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2

NLA - Kit, Front/Rear Tie-Down Brackets Mounting Hardware

N/A

Create/add to Wishlist

1140263

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bracket, Top Battery Support, Black	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
	T-Nut (5/16-18)	1	4
2	Bracket, Top Battery Support, Black	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
6	T-Nut (5/16-18)	1	4
20	Bracket, Top Battery Support, Black	1	1
21	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
22	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
23	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
24	T-Nut (5/16-18)	1	4
25	Bracket, Top Battery Support, Black	1	1
26	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
27	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
28	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
29	T-Nut (5/16-18)	1	4

NLA - Kit, Top Battery Support Bracket and Mounting Hardware

Create/add to Wishlist

1135963

Bracket, Battery Support, Black

Create/add to Wishlist

1140260

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Bracket, Battery Support, Front, Black	1	1
16	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
17	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
20	Bracket, Battery Support, Front, Black	1	1
21	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
22	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
27	Bracket, Battery Support, Front, Black	1	1
28	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
29	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
32	Bracket, Battery Support, Front, Black	1	1
33	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
34	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3

NLA - Kit, Front Battery Support Bracket with Mounting Hardware

N/A

Create/add to Wishlist

1140059

NLA - Kit, Actuator Braking Module w/ Instruction Sheet

N/A

Create/add to Wishlist

1141508

Instruction Sheet, Actuator Braking Module

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 19-23
B	Includes items 25-28
C	Includes items 32-34
D	Actuator Braking Module added to Tilt Actuator and is backward compatible to all systems manufactured before 5/18/06. The addition of the braking module eliminated the requirement of a Heavy Duty Tilt Actuator.
E	Actuator Braking Module can be assembled in the field on seating systems manufactured before 5/18/06 as well. Must verify with an Invacare Technician when a kit is required.
F	Not Shown

Catalog Literature

Parts Books for Tarsys® Tilt Only (2GT™) Recline Only (2GR™) Tilt and Recline (2GTR™)
