Swingarm Assembly & Hardware - SureStep

Print this page

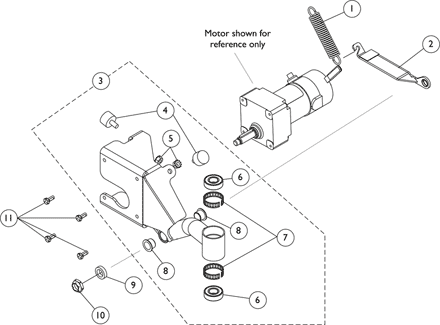

Swingarm Assembly - SureStep

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1127400	Spring, Extension (1 x 4-1/2" L)	1	1	$17.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1143829	Bracket, Stop Spring with Flanged Bearing and Hook Fastener, Black - Right	1	1	$16.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1143830	Bracket, Stop Spring with Flanged Bearing and Hook Fastener, Black - Left	1	1	$16.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1143678	Swingarm Assembly - Right	1	1	$74.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1143679	NLA - Swingarm Assembly - Left	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1108437	NLA - Bumper, Rubber (1" Diameter x 5/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	000037	NLA - Nut, Keps (5/16-18)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	40117X006	Bearing (5/8")	1	2	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1110717	Ring, Tolerance	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1140994	Bearing, Flange (5/8 x 23/32 x 1/2")	1	2	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1110685	NLA - Spacer, Bushing	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1028550	Locknut (5/8-18)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1121024	Screw, Hex Head w/ Patch (1/4-20 x 5/8")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Stop Spring Bracket includes flanged bearing and hook fastener.
B	Includes Swingarm plus item 4-8.

Catalog Literature

Parts Books for Pronto® M41™ with SureStep®
