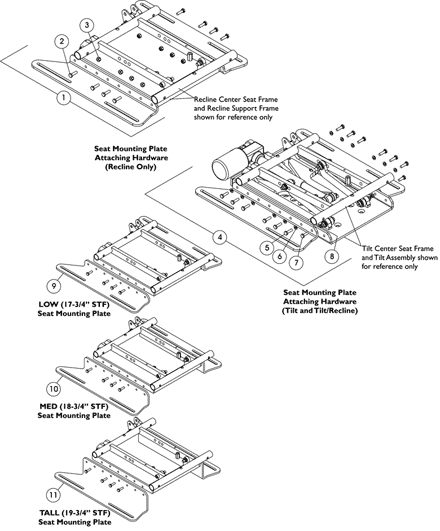

Frames - Seat Mtg. Plates & Hdwr. - LOW - MED - TALL Seat-To-Floor Heights - 3G Storm

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1143803

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8
2	Screw, Hex Head (1/4-20 x 7/8")	1	8
3	Locknut (1/4-20)	1	8

NLA - Kit, Seat Mounting Plate Hardware (Recline Only)

Create/add to Wishlist

1143802

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	NLA - Screw, Hex Head (1/4-20 x 1")	1	12
6	Lockwasher, Split (1/4")	1	12
7	NLA - Bolt, Hex Head Cap (1/4-20 x 3/4")	1	2
8	Locknut (1/4-20)	1	2

Kit, Seat Mounting Plate Hardware (Tilt & Tilt/Recline)

$109.00

Create/add to Wishlist

1144769

Plate, LOW (17-3/4" STF) Seat Mounting (Pair)

$305.00

Create/add to Wishlist

1144770

Plate, MED (18-3/4" STF) Seat Mounting (Pair)

$395.00

Create/add to Wishlist

1144771

Plate, TALL (19-3/4" STF) Seat Mounting (Pair)

$294.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-3
B	Includes items 5-8
C	Part Number contains the Right and Left side Brackets

Catalog Literature

Parts Books for Formula™CG Powered Seating CGE/CGT/CGTE/CGR/CGTR/CGTRE
