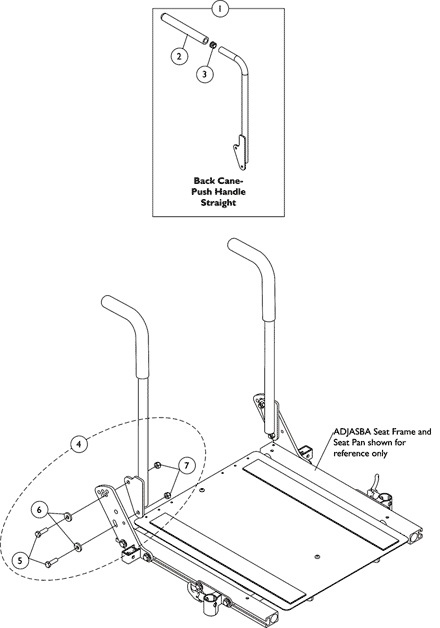

Canes - Back & Attaching Hardware - ADJASBA Seat (16" - 22" W) (After 7/4/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Back Height	Back Cane- Push Handle Straight Right	Back Cane- Push Handle Straight Left
12"	1133785 MSRP: $75.00	1133786 MSRP: $75.00
13"	1133787	1133788
14"	1133789	1133790
15"	1133791	1133792
16"	1133793 MSRP: $98.00	1133794 MSRP: $98.00
17"	1133795 MSRP: $59.00	1133796 MSRP: $59.00
18"	Note-C 1143334 MSRP: $98.00	Note-C 1143335 MSRP: $98.00
19"	1133799 MSRP: $60.00	1133800 MSRP: $60.00
20"	Note-D 1133801 MSRP: $98.00	Note-D 1133802 MSRP: $98.00
21"	1136011 MSRP: $62.00	1136012 MSRP: $62.00
22"	1136013 MSRP: $98.00	1136014 MSRP: $98.00
23"	1136015 MSRP: $66.00	1136016 MSRP: $66.00
24"	1136017 MSRP: $98.00	1136018 MSRP: $98.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	All 20"-24" high ABS Curved Backs ordered On-Chair will use the 20" high back cane.
B	21"-24" high back canes are only offered On-Chair when Back Post Only option is selected.
C	Wheelchairs manufactured before 5/15/09 with a Contoura Back 25" or 29" high and wheelchairs manufactured after 5/14/09 with a Curve Contoura Back 22" high will use the 18" high Straight Back Cane w/ Push Handle.
D	Wheelchairs manufactured after 5/14/09 with a Curve Contoura Back 25" or 28" high will use the 20" high Straight Cane w/ Push Handle.

#1 Back Cane Assemblies

N/A

Create/add to Wishlist

1135506

Package, Foam Hand Grip (9" L)

$40.00

Create/add to Wishlist

1134426

Package, Plug Button, Black (3/4")

$20.00

Create/add to Wishlist

1135999

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
5	Screw, Hex Head (5/16-18 x 1")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
7	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Screw, Hex Head (5/16-18 x 1")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
7	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
5	Screw, Hex Head (5/16-18 x 1")	1	4
6	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
7	Locknut (5/16-18)	1	4
8	Screw, Hex Head (5/16-18 x 1")	1	4
9	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
10	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4
2	Screw, Hex Head (5/16-18 x 1")	1	4
3	Washer, Flat (21/64 x 53/64 x 7/64")	1	4
4	Locknut (5/16-18)	1	4

Kit, Back Cane Mounting Hardware (Pair)

$29.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 5-7

Catalog Literature

Parts Books for Power Tilt Only (PTO-STM) Elevating Seat w/ PTO (ESS-PTO)
