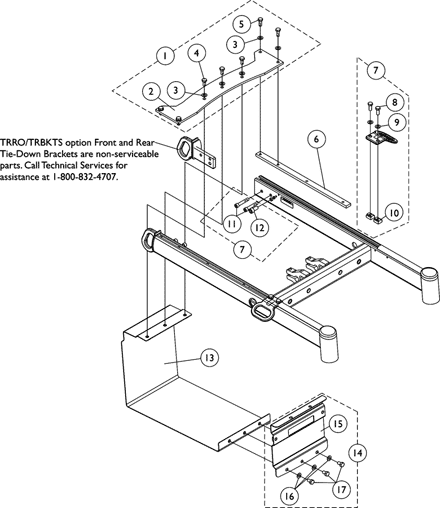

Frames - Hardware - Base Interface - Formula CG Powered Seating w/ TRBKTS Option

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1140263

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bracket, Top Battery Support, Black	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
	T-Nut (5/16-18)	1	4
2	Bracket, Top Battery Support, Black	1	1
3	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
5	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
6	T-Nut (5/16-18)	1	4
20	Bracket, Top Battery Support, Black	1	1
21	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
22	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
23	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
24	T-Nut (5/16-18)	1	4
25	Bracket, Top Battery Support, Black	1	1
26	Washer, Flat (5/16 x 5/8 x 1/16")	1	7
27	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	3
28	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	4
29	T-Nut (5/16-18)	1	4

NLA - Kit, Top Battery Support Bracket and Mounting Hardware

N/A

A ,D

Create/add to Wishlist

1144766

Bar, Clamping

Create/add to Wishlist

1140259

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
9	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
10	T-Nut (5/16-18)	1	4
11	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
12	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
13	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
14	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
15	T-Nut (5/16-18)	1	4
16	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
17	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
19	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
20	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
21	T-Nut (5/16-18)	1	4
22	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
23	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2
14	NLA - Screw, Hex Head (5/16-18 x 3/4")	1	4
15	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
16	T-Nut (5/16-18)	1	4
17	Screw, Socket Head w/ Patch (5/16-18 x 1-3/4")	1	4
18	NLA - Screw, Socket Head (3/8-16 x 3/4")	1	2

NLA - Kit, Front/Rear Tie-Down Brackets Mounting Hardware

N/A

Create/add to Wishlist

1135963

Bracket, Battery Support, Black

$99.00

Create/add to Wishlist

1140260

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Bracket, Battery Support, Front, Black	1	1
16	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
17	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
20	Bracket, Battery Support, Front, Black	1	1
21	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
22	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
27	Bracket, Battery Support, Front, Black	1	1
28	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
29	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3
32	Bracket, Battery Support, Front, Black	1	1
33	Washer, Flat (5/16 x 5/8 x 1/16")	1	3
34	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	3

NLA - Kit, Front Battery Support Bracket with Mounting Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5. This kit is used for TRBKTS option for ADJASBA Non-Powered Seating and Formula CG Powered Seating Systems. Disregard the T-nuts contained in the kit when using for the Formula CG Systems.
B	Includes items 8-12
C	Includes items 15-17
D	T-Nut not shown for a Formula CG System application.

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
