1146662

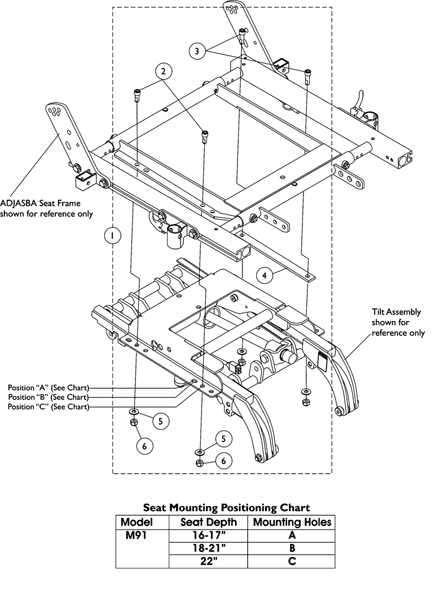

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	2
3	NLA - Screw, Socket Head w/ Patch (5/16-18 x 1")	1	2
4	Shim	1	1
5	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
6	Locknut (5/16-18)	1	4

NLA - Kit, ADJASBA Seat Mounting Hardware (U375 Weight Limit, 0 Deg. Setting)

N/A

Note Code	Definition
A	Includes items 2 and 6. Shim added 12/1/06. For Chairs manufactured Before 12/1/06, it is recommended to order new hardware and add the shim as shown.
