1

0054106

NLA - Locknut, High Profile (3/8-16)

1

N/A

Create/add to Wishlist

2

1106223

Screw, Socket Head (3/8-16 x 2-1/2")

1

$10.00

Create/add to Wishlist

3

1117326

NLA - Screw, Socket Head w/ Patch (5/16-18 x 7/8")

1

6

N/A

Create/add to Wishlist

4

1068139

NLA - Clamping Bar, Actuator Frame

1

2

N/A

Create/add to Wishlist

5

1087922

NLA - Guidance Assembly - Right or Left

1

2

N/A

A ,B

Create/add to Wishlist

6

0195606

NLA - Screw, Socket, Cap, Flat Head (1/4-20 x 3/4")

1

4

N/A

Create/add to Wishlist

7

0055506

NLA - Screw, Button Head, Socket (5/16-18 x 2")

1

2

N/A

Create/add to Wishlist

8

0055800

NLA - Washer, Nylon (7/16 x 3/4 x 3/32")

1

4

N/A

Create/add to Wishlist

9

1068116

NLA - Bushing (5/16 x 7/16 x 1")

1

2

N/A

Create/add to Wishlist

10

0054906

Locknut, High Profile (5/16-18)

1

2

$10.00

Create/add to Wishlist

11

0053900

NLA - Washer, Nylon (3/8 x 13/16 x 1/16")

1

2

N/A

Create/add to Wishlist

12

1068143

NLA - Frame, Actuator, 2G Storm, Black

1

N/A

Create/add to Wishlist

13

0258306

NLA - Screw, Hex Head (3/8-16 x 1-3/4")

1

3

N/A

Create/add to Wishlist

14

0120300

Bushing (3/8 x 1/2 x 7/8")

1

4

Create/add to Wishlist

15

0054106

NLA - Locknut, High Profile (3/8-16)

1

4

N/A

Create/add to Wishlist

16

1106223

Screw, Socket Head (3/8-16 x 2-1/2")

1

$10.00

Create/add to Wishlist

17

0139900

Washer, Nylon (1/2 x 3/4 x 3/32")

1

8

Create/add to Wishlist

18

0056000

NLA - O-Ring (1/2 x 7/8 x 3/16")

1

2

N/A

Create/add to Wishlist

19

1154068

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Actuator Motor Assembly (6-1/2" Stroke)	1	1
	NLA - Pin, Roll (1/8" x 7/8")	1	1
	Instruction Sheet, PTO Actuator Installation	1	1
	Actuator Motor Assembly (6-1/2" Stroke)	1	1
	NLA - Pin, Roll (1/8" x 7/8")	1	1
	Instruction Sheet, PTO Actuator Installation	1	1
	Actuator Motor Assembly (6-1/2" Stroke)	1	1
21	NLA - Pin, Roll (1/8" x 7/8")	1	1
	Instruction Sheet, PTO Actuator Installation	1	1
	Actuator Motor Assembly (6-1/2" Stroke)	1	1
21	NLA - Pin, Roll (1/8" x 7/8")	1	1
	Instruction Sheet, PTO Actuator Installation	1	1
	Actuator Motor Assembly (6-1/2" Stroke)	1	1
	NLA - Pin, Roll (1/8" x 7/8")	1	1
	Instruction Sheet, PTO Actuator Installation	1	1

NLA - Kit, Actuator Motor, 6-1/2" Stroke

1

N/A

E

Create/add to Wishlist

20

1077780

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Actuator Motor Assembly (6-1/2" Stroke)	1	1
1	NLA - Locknut, High Profile (3/8-16)	1	1
2	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
11	NLA - Washer, Nylon (3/8 x 13/16 x 1/16")	1	2
18	NLA - O-Ring (1/2 x 7/8 x 3/16")	1	2
21	NLA - Pin, Roll (1/8" x 7/8")	1	1
	Instruction Sheet, PTO Actuator Installation	1	1
	Actuator Motor Assembly (6-1/2" Stroke)	1	1
1	NLA - Locknut, High Profile (3/8-16)	1	1
2	Screw, Socket Head (3/8-16 x 2-1/2")	1	1
11	NLA - Washer, Nylon (3/8 x 13/16 x 1/16")	1	2
18	NLA - O-Ring (1/2 x 7/8 x 3/16")	1	2
21	NLA - Pin, Roll (1/8" x 7/8")	1	1
	Instruction Sheet, PTO Actuator Installation	1	1

NLA - Kit, Actuator Motor, 6-1/2" Stroke w/ Mounting Hardware

1

N/A

C

Create/add to Wishlist

21

1028848

NLA - Pin, Roll (1/8" x 7/8")

1

N/A

Create/add to Wishlist

22

1068141

NLA - Link, Black

1

2

N/A

Create/add to Wishlist

23

1081499

Link Assembly, Weight Shift Tilt

1

Create/add to Wishlist

24

1084185

NLA - Cover w/ Attaching Hardware, Rear Actuator

1

N/A

D

Create/add to Wishlist

25

1072695

NLA - Screw, Phillips Pan Head Tap (#6 x 1/2")

1

2

N/A

Create/add to Wishlist

26

0313900

NLA - Rod, End with Locknut and Roll Pin

1

N/A

Create/add to Wishlist

27

1064694

Block, Pivot, Linear Guidance

1

2

Create/add to Wishlist

28

1102887

Screw, Socket Flat Head (1/4-20 x 1/2")

1

4

Create/add to Wishlist

29

1021344

Screw, Socket Head (5/16-18 x 1-1/2")

1

4

$8.00

Create/add to Wishlist

30

0225100

NLA - Bumper, Tilt

1

2

N/A

Create/add to Wishlist

31

1026158

Locknut (5/16-18)

1

4

$9.20

Create/add to Wishlist

32

1098615

NLA - Bracket, Link w/ Caution Decal, Black

1

N/A

Note Code	Definition
A	Guidance assembly changed 11/09/99 replacing right/left side part numbers with one universal part number and serves as a direct replacement for chairs manufactured before 11/09/99 as well.
B	Includes Linear Guidance, Pivot Block and Screws
C	Includes Actuator Assembly and items 1, 2, 11, 18, 21 and Instruction Sheet
D	Includes Items 25
E	Includes Actuator Assembly, item 21 & Instruction Sheet

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

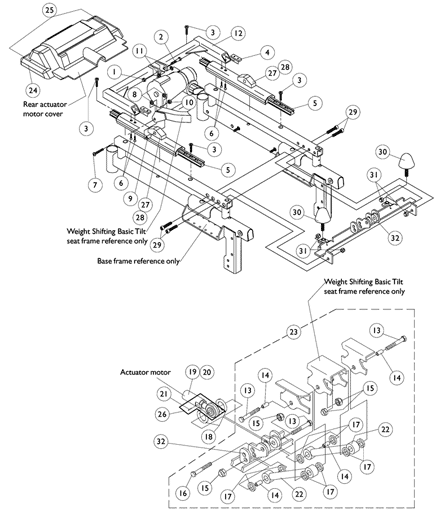

Frames - Seat Attaching Hardware and Tilt Actuator (RII MWD and ProntoR2)
