1

1041522

Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left

1

$44.00

Create/add to Wishlist

1

1070859

Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left

1

$53.00

Create/add to Wishlist

2

1117328

Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)

1

$66.00

A

Create/add to Wishlist

2

1110818

Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair)

2

1

$122.00

Create/add to Wishlist

2

1117327

Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W)

1

$47.00

A

Create/add to Wishlist

2

1110817

Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair)

2

1

$122.00

Create/add to Wishlist

3

1027095

Plug Button, Black (7/8")

1

2

$9.20

Create/add to Wishlist

4

1055949

Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")

2

1

$13.00

Create/add to Wishlist

4

1094270

NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4")

2

1

N/A

B

Create/add to Wishlist

5

1090768

Kit, Lock Handle w/Rivets (Pair)

2

1

$16.00

Create/add to Wishlist

6

47471X074

Spring, Arm Lock

1

$8.00

Create/add to Wishlist

7

1028594

Pin, Arm Lock, Black

1

$8.00

Create/add to Wishlist

8

1032245

Grip, Foam Hand (6-7/8" L)

1

$16.00

Create/add to Wishlist

9

1018225

Spring, Torsion with Button Lock

1

$8.00

Create/add to Wishlist

10

1028645

Rivet

1

6

$10.00

Create/add to Wishlist

11

1064130

NLA - Guard, Clothing

1

N/A

Create/add to Wishlist

12

1035065

Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK

1

$98.00

Create/add to Wishlist

13

0050406

Washer, Flat (1/4 x 5/8 x 1/16")

1

8

$7.00

Create/add to Wishlist

14

7930333

Locknut (1/4-20)

25

4

$44.00

Create/add to Wishlist

15

1024793

NLA - Screw, Hex Head (1/4-20 x 1-3/4")

1

4

N/A

Create/add to Wishlist

16

0050506

NLA - Lockwasher, High Collar, Split (1/4")

1

4

N/A

Create/add to Wishlist

17-21

See Chart

Added to Cart

Side	17. Arm Tube w/ Arm Pad - Full Length	17. Arm Tube w/ Arm Pad - Desk Length	18. Arm Base Assembly	19. Armrest Socket - Front	20. Armrest Socket - Rear	21. Armrest Mtg. Hardware
Right 14" Deep	Note-A 1110821- NLA	Note-A 1110819- NLA	1072943- NLA	1072951- NLA	0121602- NLA	1072949- NLA
Left 14" Deep	Note-A 1110822- NLA	Note-A 1110820- NLA	1072944- NLA	1072952- NLA	0121502- NLA	1072950- NLA
Right 15" and Deeper	Note-A 1110821- NLA	Note-A 1110819- NLA	1057411- NLA	0121502- NLA	0121302- NLA	1072789- NLA
Left 15" and Deeper	Note-A 1110822- NLA	Note-A 1110820- NLA	1057412	0121602- NLA	0121402- NLA	1072930- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order right and left arm tube with arm pad for chairs serviced before 1/3/02.

Item #'s 17-21 Armrest Assembly - Non-Flip Back Arms Before 10/15/98

N/A

Note Code	Definition
A	As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with screws for chairs serviced before 1/3/02.
B	For Black Urethane Waterfall Arm Pads Only

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

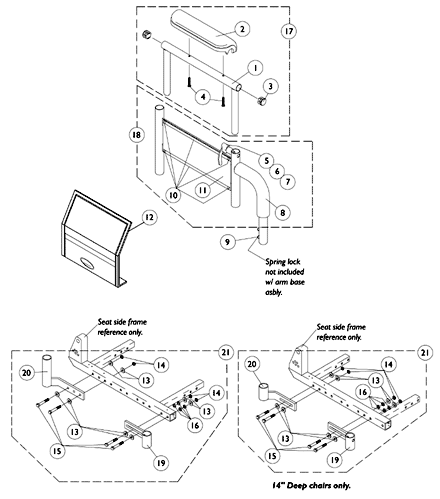

Arms - Non-Flip Back (Before 10/15/98)
