Front Riggings - Center Mount Rigging Mtg Hdwr. (CGT) For TDX SP/SP-GT/SR (12"-16" W)

Print this page

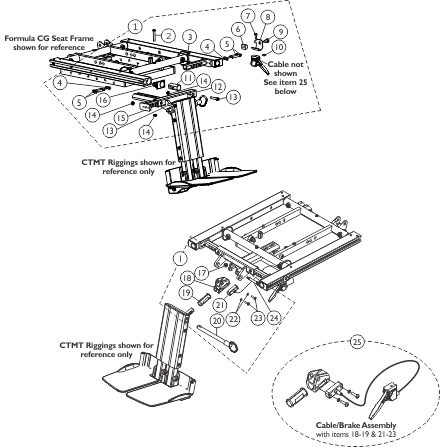

Front Rigging - Center Mount Rigging Mtg Hdwr., (12

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1147106

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (12"-16" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (12"-16" W)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (12"-16" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (12"-16" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (12"-16" W)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
2	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	1
3	Tie Wrap (11-1/2" L)	1	2
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2")	1	4
6	T-Nut (5/16-18)	1	1
7	NLA - Screw, Socket Head (#10-32 x 1/2")	1	1
8	Bracket, Release Handle Mounting, Black	1	1
9	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	1
10	Nut, Square (#10-32)	1	1
11	Plug, Support	1	2
12	Support, Footrest, Center Mount Rigging, Black (12"-16" D)	1	1
13	Screw, Socket Head (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	3
15	Support, Seat Pan (12"-16" W)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1
15	Support, Seat Pan (12"-16" W)	1	2
16	Cap, End, Side Rail, Black	1	2
17	Locknut (1/4-20)	1	1
18	Housing, Ratchet	1	1
19	Bearing, Glide	1	2
20	NLA - Pin, Quick Release (5" Long)	1	1
21	Cable/Brake Assembly	1	1
22	NLA - Washer, Lock (3/16 x 5/16 x 1/32")	1	2
23	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
24	Screw, Shoulder Hex Socket Head (5/16" x 1-5/8", 1/4-20)	1	1

Kit, CTMT-FJ Center Mount Riggings Mounting Hardware

$264.00

Create/add to Wishlist

1147105

Support, Footrest, Center Mount Rigging, Black (12"-16" D)

Create/add to Wishlist

1113389

Housing, Ratchet

$73.00

Create/add to Wishlist

1113383

Bearing, Glide

$11.00

Create/add to Wishlist

1113622

Cable/Brake Assembly

$51.00

Create/add to Wishlist

1028527

NLA - Washer, Lock (3/16 x 5/16 x 1/32")

N/A

Create/add to Wishlist

40163X008

Screw, Phillips Pan Head (#10-32 x 11/16")

$10.00

Create/add to Wishlist

1121079

Cable/Brake Assembly w/ Ratchet Housing and Glide Bearing

$116.00

Create/add to Wishlist

1145733

NLA - Instruction Sheet, Center Mount Rigging For Formula CG

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-23
B	Includes items 18-19 & 21-23
C	Not Shown
