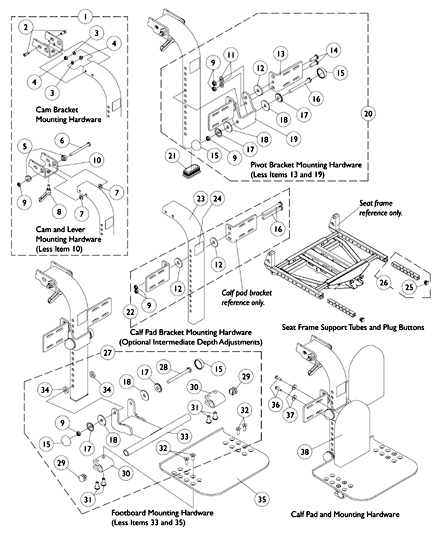

Front Riggings - Footboard Assembly 16"-18" Deep - 90 WSBT

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1101542	NLA - Hardware, Cam Bracket Mounting	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1007219	Screw, Socket Head (1/4-20 x 5/8")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1026907	Washer (1/4 x 1/2 x 1/16")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930333	Locknut (1/4-20)	25	2	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1091547	NLA - Cam, Mounting Bracket, Upper	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1037110	Screw, Hex Head (5/16-24 x 3-1/2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026032	Washer, Nylon (11/32 x 11/16 x 1/16")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1099502	NLA - Lever, Adjustment	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	7930330	NLA - Locknut (5/16-24)	25	9	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1099494	NLA - Bracket, Cam with Fastener, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1071487	NLA - Washer, Nylon (23/64 x 1-15/64 x 7/64")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1099500	NLA - Bracket, Calf Pad Mounting, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1099504	NLA - Screw, Socket Button Head (5/16-24 x 7/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1028835	NLA - Cap, Hub, Black	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1028600	NLA - Screw, Hex Head (5/16-24 x 3")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1028491	NLA - Washer, Caplugs (11/32" I.D. x 1" O.D.)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1092409	Washer, Steel (5/16 x 1-1/4 x 1/16")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1099499	NLA - Bracket, Pivot, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1101543	NLA - Hardware, Pivot Bracket Mounting	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1101088	NLA - Plug Button, Rectangular	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1101092	NLA - Hardware, Calf Pad Bracket Mounting	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1101541	NLA - Tube, Legrest with Warning Decal	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1098331	NLA - Decal, Warning	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	0062200	NLA - Plug Button, Square (3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1096519	NLA - Support Tube w/ Plug Button, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1101544	NLA - Hardware, Footboard Mounting	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1025705	NLA - Screw, Hex Head (5/16-24 x 3-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	1027097	Plug Button, Black (3/4")	1	2	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	1058517	Clamp, Footplate	1	2	$13.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	1082686	Nut, Barrel, Hex Head (1/4-20 x 11/16")	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	1029545	Screw, Socket Flat Head (1/4-20 x 3/4")	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	1090551	NLA - Bracket, Footboard Pivot, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	1074210	NLA - Washer, Nylon (23/64 x 3/4 x 5/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
35	1094613	NLA - Footboard, Black (18" W)	1	1	N/A	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
36	7930328	NLA - Package, Screw, Phillips Pan Head (#10-32 x 11/16")	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
37	1070587	Washer, Flat (3/16 x 5/8 x 1/16")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
38	88804529X003	Pad, Legrest, Vinyl - Right	1	1	$48.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
38	88804529X004	Pad, Legrest, Vinyl - Left	1	1	$48.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specity U67 black upholstery color when ordering.
B	Includes Items 2-9
C	Includes Items 9, 11, 12 and 14-18
D	Includes Items 9, 12 and 16
E	Includes Items 9, 15, 17, 18 and 28-34
F	18" Wide

Catalog Literature

Parts Books for Tarsys® Weight Shifting Basic Tilt Powered Seating
