EQUIPMENT US Site

1

1125478

Bracket, Arm Socket/Cane, Rear - Right

1

$62.00

Create/add to Wishlist

1

1125479

Bracket, Arm Socket/Cane, Rear - Left

1

$62.00

Create/add to Wishlist

2

1125734

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	T-Nut (5/16-18)	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
7	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
9	T-Nut (5/16-18)	1	4
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
7	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
9	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
3	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
4	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
5	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2
2	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	2

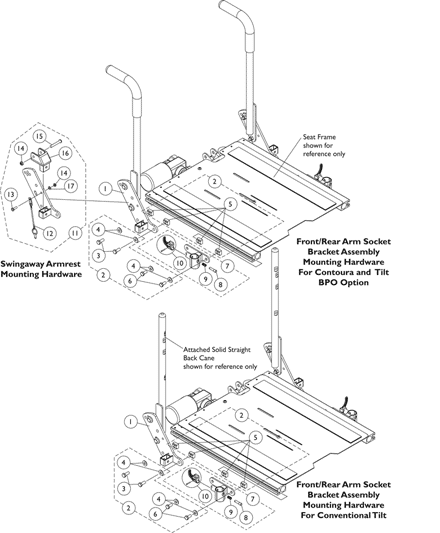

Kit, Front/Rear Arm Socket Assembly Mounting Hardware

1

$23.00

A

Create/add to Wishlist

7

1122619

Socket, Arm, Front - Right

1

$72.00

B

Create/add to Wishlist

7

1122620

Socket, Arm, Front - Left

1

$72.00

B

Create/add to Wishlist

8

1028594

Pin, Arm Lock, Black

1

$8.00

Create/add to Wishlist

9

47471X074

Spring, Arm Lock

1

$8.00

Create/add to Wishlist

10

1090768

Kit, Lock Handle w/Rivets (Pair)

2

1

$16.00

Create/add to Wishlist

11

1125736

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1

Kit, Swingaway Armrest Mounting Hardware

1

$50.00

C

Note Code	Definition
A	Includes items 3-6
B	Includes Front Arm Socket and items 8-10
C	Includes items 12-17
