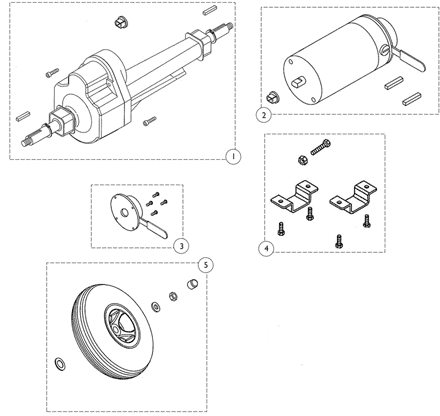

Motor - Transaxle & Rear Wheel
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1148825 | Kit, Motor with Brake Includes: (1) ea. Motor Assembly, (1) ea. Guide, and (2) ea. Keys. | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
3 | 1148827 | Kit, Brake with Hardware Includes: (1) ea. Brake and (4) ea. Screw M4 x 8L. | 1 | 1 |
$275.00 |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1148835 | Kit, Transaxle Hardware Includes (2) ea. Holder, Differential, (4) ea. Bolt M6 x 12L, (1) ea. Bolt M8 x 25L, and (1) ea. Nut. | 1 | 1 |
$32.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1148860 | Kit, Rear Wheel Includes: (2) ea. Spacers. (1) ea. Rear Wheel, (1) ea. Plain Washer, (1) ea. Nylon Nut, and (1) ea. Cap Washer. | 1 | 1 |
$216.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1144824 | Kit, Anti-Tip Wheels Includes: (2) ea. Nylon Nut, (4) ea. Bearings, (2) ea. Bolts, and (2) ea. Anti-Tip Wheels | 1 | 1 |
$38.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Not shown in illustration. |
