Tiller Maintenance

Print this page

Tiller Maintenance

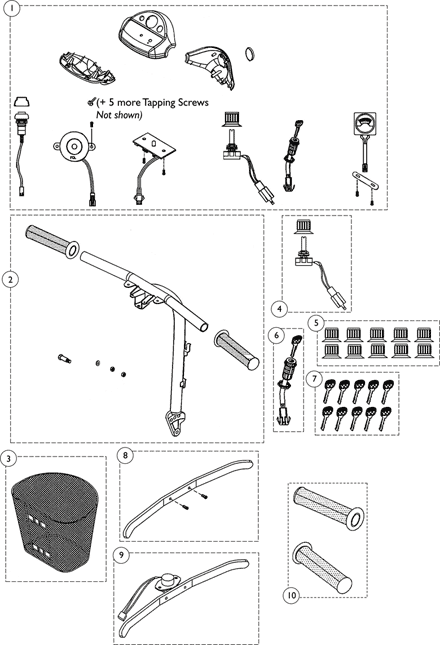

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1148838	Kit, Tiller Cover, Red Includes: (1) ea. Upper Steering Cover, (1) ea. Front Steering Cover - Red, (1) ea. Rear Steering Cover - Red, (1) ea. Faceplate Decal, (1) ea. Reflector, (6) ea. Tapping Screws, (1) ea. Volt Meter, (2) ea. Screw, (1) ea. Speed Pot, (1) ea. Speed Control Knob, (1) ea. Ignition Switch w/ Key, (1) ea. Horn speaker, (2) ea. Screw, (1) ea. 2-Pole Switch Complete, (1) ea. Splash Cap Complete, (1) ea. Meter PC Board, and (2) ea. Screws.	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1148839	Kit, Tiller Cover, Blue Includes: (1) ea. Upper Steering Cover, (1) ea. Front Steering Cover - Blue, (1) ea. Rear Steering Cover - Blue, (1) ea. Faceplate Decal, (1) ea. Reflector, (6) ea. Tapping Screws, (1) ea. Volt Meter, (2) ea. Screw, (1) ea. Speed Pot, (1) ea. Speed Control Knob, (1) ea. Ignition Switch w/ Key, (1) ea. Horn speaker, (2) ea. Screw, (1) ea. 2-Pole Switch Complete, (1) ea. Splash Cap Complete, (1) ea. Meter PC Board, and (2) ea. Screws.	1	1		A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1169666	Kit, Tiller Cover, Onyx Includes: (1) ea. Upper Steering Cover, (1) ea. Front Steering Cover - Onyx, (1) ea. Rear Steering Cover - Onyx, (1) ea. Faceplate Decal, (1) ea. Reflector, (6) ea. Tapping Screws, (1) ea. Volt Meter, (2) ea. Screw, (1) ea. Speed Pot, (1) ea. Speed Control Knob, (1) ea. Ignition Switch w/ Key, (1) ea. Horn speaker, (2) ea. Screw, (1) ea. 2-Pole Switch Complete, (1) ea. Splash Cap Complete, (1) ea. Meter PC Board, and (2) ea. Screws.	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1148841	Kit, Steering Bar Includes: (1) ea. Steering Bar, (2) ea. Hand Grips, (1) ea. Plain Washer, (2) ea. Nylon Washer, and (1) ea. Bolt.	1	1	$147.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1148861	NLA - Basket	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1577430	Front Composite Basket	1	1	$56.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1144791	Kit, Speed Pot - Includes: Speed Control Knob (1) and Speed Pot - 30 K Ohms (1)	1	1	$149.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1144792	Package, Speed Control Knob	10	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1144793	Ignition Switch with Key Assembly	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1144794	Package, Ignition Key	10	1	$130.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1144796	Throttle Lever w/ Hardware	1	1	$27.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1144795	Throttle Pot and Lever Assembly	1	1	$131.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1144802	Hand Grip (Pair)	2	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Due to design change, the knob may be differenct in appearance but is functionally equivalent to the original knob.
B	To be used on scooters built before serial number 10BCT600382.
C	To be used on scooter built after serial number 10BCT600381.
D	Basket No Longer Available. Oder part number 1577430 as a replacement.

Catalog Literature

Parts Books for Lynx L-3X Scooter Series
