1

1027095

Plug Button, Black (7/8")

1

2

$9.20

Create/add to Wishlist

2

1052997

NLA - Headrest Tube Assembly, Black - Right

1

N/A

Create/add to Wishlist

2

1052998

NLA - Headrest Tube Assembly, Black - Left

1

N/A

Create/add to Wishlist

3

See Chart

Added to Cart

Back Height	16"-17" Wide Rt.	16"-17" Wide Lt.	18"-24" Wide Rt.	18"-24" Wide Lt.
18" H	1052079	1052080	1052089	1052090
20" H	1052081	1052082	1052091	1052092
22" H	1052083	1052084	1052093	1052094
24" H	1052085 MSRP: $172.00	1052086 MSRP: $172.00	1052095	1052096
26" H	1052087	1052088	1052097	1052098

Create/add to Wishlist

#3 Back Cane with Grip

N/A

Create/add to Wishlist

4

1050214

Cable with Trigger

1

2

B

Create/add to Wishlist

4

1050215

Cable with Trigger

1

2

$82.00

C

Create/add to Wishlist

4

1050216

Cable with Trigger

1

2

$82.00

D

Create/add to Wishlist

5

1026032

Washer, Nylon (11/32 x 11/16 x 1/16")

1

4

$8.00

Create/add to Wishlist

6

1050153

Screw, Shoulder Hex Socket Head (5/16 x 7/8", 1/4-20)

1

2

$10.00

Create/add to Wishlist

7

1050154

Cylinder, Lock, Recline

1

2

$119.00

E

Create/add to Wishlist

7

1050306

Cylinder, Lock

1

2

$113.00

F

Create/add to Wishlist

8

1050136

Pivot, Block

1

2

$33.00

Create/add to Wishlist

9

1012371

Washer, Nylon (3/8 x 7/8 x 1/16")

1

12

$10.00

Create/add to Wishlist

10

1031665

Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)

1

4

$8.00

Create/add to Wishlist

11

1050293

Bar, Spreader, Black (14-20" W)

1

$47.00

G

Create/add to Wishlist

11

1050294

Bar, Spreader, Black (21-24" W)

1

H

Create/add to Wishlist

12

1024713

Spring, Torsion w/ Button

1

2

$8.00

Create/add to Wishlist

13

1091417

NLA - Screw, Phillips Pan Head (#10-24 x 1-1/4")

1

2

N/A

Create/add to Wishlist

14

1095503

NLA - Package, Tie Wrap (5-5/8" L)

10

1

N/A

Create/add to Wishlist

15

1025736

Locknut (1/4-20)

1

2

$7.20

Create/add to Wishlist

16

1026907

Washer (1/4 x 1/2 x 1/16")

1

2

$7.20

Create/add to Wishlist

17

1026158

Locknut (5/16-18)

1

4

$9.20

Create/add to Wishlist

18

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

4

$7.20

Create/add to Wishlist

19

1134498

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
22	Sensor, Actuator Switch	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1
20	NLA - Screw, Slotted Hex Washer Head Tap (#4-3/8")	1	5
21	NLA - Washer, Internal Tooth Lock (#4-40)	1	5
22	Sensor, Actuator Switch	1	1
23	NLA - Clamp, Cable	1	1

Kit, Limit Switch Assembly

1

A

Create/add to Wishlist

24

1092913

NLA - Cable, Drive Lockout Sensor

1

N/A

Create/add to Wishlist

25

1146573

NLA - Cable, Drive Lockout Sensor, MK6i

1

N/A

I

Create/add to Wishlist

26

1144926

Cable, Drive Lockout Sensor, MK6i

1

$98.00

J

Create/add to Wishlist

27

1142231

Cable, GB TT Interface

1

K

Note Code	Definition
A	Includes items 20-23. Cable sensor is not included, see item 24, 25 or 26
B	26" high back canes
C	22-24" high back canes
D	18-20" high back canes
E	250 lb. weight limit
F	251-400 lb. weight limit
G	16-17" wide
H	18-24" wide
I	Sensor Cable used for chairs manufactured with MK6i electronics and 4-Pole Motors only.
J	Sensor Cable used with item 27 GB TT Interface Cable for chairs manufactured with MK6i Electronics and GB TT Motors
K	Interface Cable used with item 26 Sensor Cable for chairs manufactured with MK6i Electronics and GB TT Motors

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

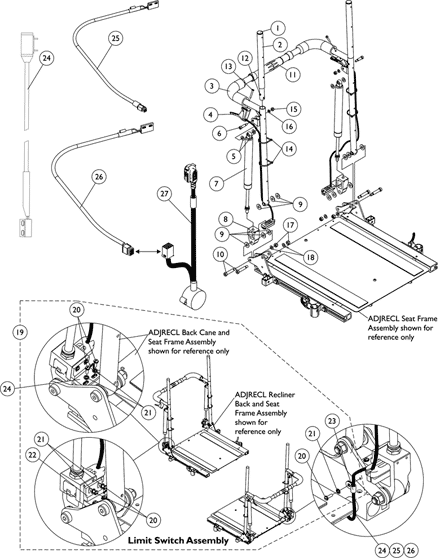

Backs - Recliner Assembly - ADJRECL Seat Frames (After 7/4/05)
