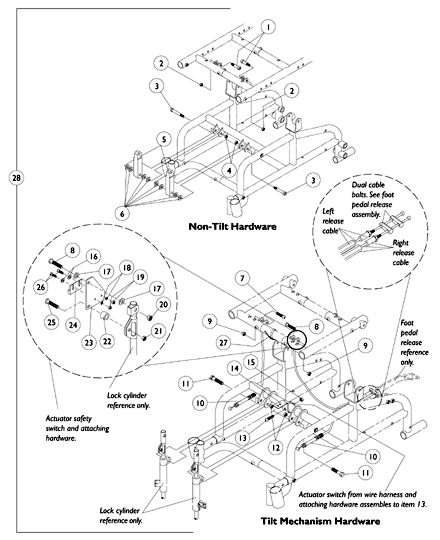

Orbit Seat Option

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1029966	NLA - Bolt, Shoulder (1/4 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026035	NLA - Locknut (#10-24)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025351	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1-1/4", 1/4-20)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930333	Locknut (1/4-20)	25	2	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1030263	NLA - Link	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1012371	Washer, Nylon (3/8 x 7/8 x 1/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1009837	Screw, Socket Button Head (1/4-20 x 1")	1	6	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1008432	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	7930323	NLA - Package, Locknut (1/4-20)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1073876	Cable, Tilt Release	1	1	$33.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1083061	NLA - Cable, Tilt - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1013560	NLA - Screw, Hex Head (5/16-18 x 1-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	60290X002	Locknut (5/16-18)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1008432	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1	$9.20	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1027704	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1011011	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	P0870X000	Nut, Hex Keps (#4-40)	1	2	$10.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1037898	NLA - Bracket, Actuator Switch Mounting, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	7930323	NLA - Package, Locknut (1/4-20)	25	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1011011	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1026033	Washer, Nylon (1/4 x 1/2 x 1/16")	1	2	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1008525	NLA - Washer, Internal Tooth Lock (#4-40)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1005889	NLA - Locknut (#4-40)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	7930323	NLA - Package, Locknut (1/4-20)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	7930332	NLA - Locknut, High Profile (#10-32)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	47330X003	Spacer (5/16 x 1/2 x 3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1037897	NLA - Plate, Actuator Mounting	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1024001	Sensor, Actuator Switch	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1005383	Screw, Socket Button Head (#10-32 x 1")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1027704	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1095503	NLA - Package, Tie Wrap (5-5/8" L)	10	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1083065	NLA - Hardware, Tilt Mechanism	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1030273	NLA - Hardware, Non-Tilt	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Items 1-6
B	Not Shown
C	Includes items 7-12 and 16-27
D	Attaching hardware for the Actuator Switch Mounting Bracket consists of part numbers 1027704, 1011011, and P0870X000.
