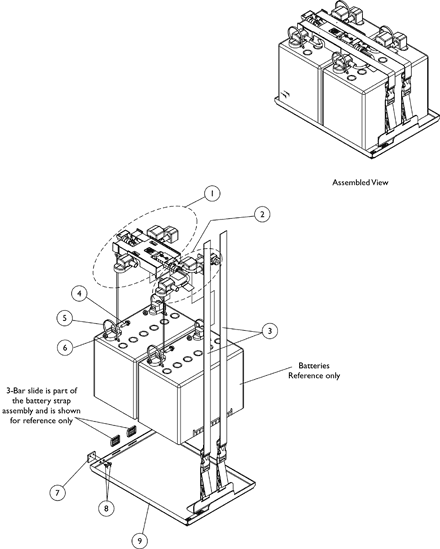

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1120366	Harness, Battery Wire with Terminal Hardware, GP24, Rear	1	1	$119.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1120365	Harness, Battery Wire with Terminal Hardware, GP24, Front	1	1	$76.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1121124	NLA - Battery Strap Assembly, 22NF and GP24	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1096799	NLA - Screw, Hex Flange Whiz Lock (1/4-20 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1095502	NLA - Package, Tie Wrap (11-1/2" L)	10	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	16721X000	Locknut (1/4-20)	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1117186	NLA - Bracket, Battery Tray Stop, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	90017X000	NLA - Screw, Phillips Pan Head (#10-32 x 5/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1120364	NLA - Battery Tray Assembly, TDX GP24	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1144611	Strip, Self Adhesive Wear (2-1/2'' L x 1/2" W)	1	1	$8.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Note Code	Definition
A	Individual components are not available for the battery wire harnesses
B	Includes items 4-6
C	Includes items 3, 7 and 8
D	Not Shown. The Self Adhesive Wear Strip is attached to the bottom side of the Battery Tray on both sides to allow removal from the Battery Box easier. One strip will accommodate both sides. Cut strip to desired length.
