Motors - 2-Pole - Gearbox & Mounting Hardware

Print this page

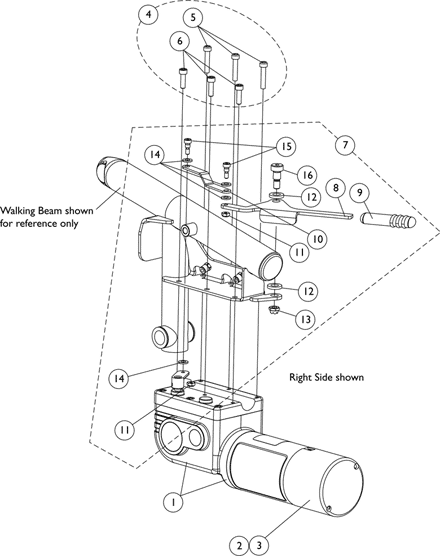

Motor, 2-Pole, Gearbox and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1149561

Motor/Gearbox Assembly - Right

$1,184.00

Create/add to Wishlist

1149562

Motor/Gearbox Assembly - Left

$1,184.00

Create/add to Wishlist

1038361

NLA - Kit, Motor/Brake Covers with Screws

N/A

A ,C

Create/add to Wishlist

1123528

NLA - Kit, Motor Brush - Internal (Large)

N/A

B ,D

Create/add to Wishlist

1141284

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
5	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
5	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
6	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
5	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
6	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
4	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
5	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
2	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
3	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3
5	NLA - Screw, Socket Head (M6 x 1 x 30mm)	1	3
6	Screw, Socket w/ Patch (M6 x 1 x 20mm)	1	3

Kit, Motor Mounting Hardware

$17.00

Create/add to Wishlist

1151612

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Lever, Motor Release - Right	1	1
9	Cap, Brake Lever End, Black	1	1
10	Link, Motor, Black	1	1
11	NLA - Locknut (#10-24)	1	2
12	Washer, Nylon (13/32 x 3/4 x 1/8")	1	2
13	NLA - Locknut (M8 x 1.25)	1	1
14	Washer, Nylon (1/4 x 1/2 x 1/16")	1	4
15	Screw, Shoulder Hex Socket Head (1/4 x 1/4", #10-24)	1	2
16	Screw, Shoulder Hex Socket Head (M10 x 12 mm, M8 x 1.25)	1	1

Kit, Motor Release Lever Hardware - Right

$41.00

Create/add to Wishlist

1152686

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Lever, Motor Release - Left	1	1
9	Cap, Brake Lever End, Black	1	1
10	Link, Motor, Black	1	1
11	NLA - Locknut (#10-24)	1	2
12	Washer, Nylon (13/32 x 3/4 x 1/8")	1	2
13	NLA - Locknut (M8 x 1.25)	1	1
14	Washer, Nylon (1/4 x 1/2 x 1/16")	1	4
15	Screw, Shoulder Hex Socket Head (1/4 x 1/4", #10-24)	1	2
16	Screw, Shoulder Hex Socket Head (M10 x 12 mm, M8 x 1.25)	1	1

Kit, Motor Release Lever Hardware - Left

$41.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes a right and left motor brake cover with 4 screws
B	Includes 2 motor brushes and instruction sheet
C	Includes items 5 and 6
D	Includes items 8-16

Catalog Literature

Parts Books for TDX® SC (CGE option included) and TDX® SPREE (CGE standard)
