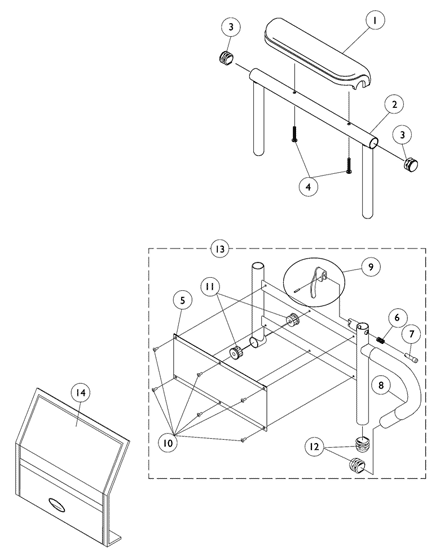

Arms - Adjustable Height (16" -20" W x 16" - 20" D) Seat Frames - TDX SC

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1117328	Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)	1	1	$66.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1110818	Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair)	2	1	$122.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1117327	Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W)	1	1	$47.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1110817	Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair)	2	1	$122.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1071253	Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1070859	Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1094270	NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4")	2	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1064130	NLA - Guard, Clothing	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	47471X074	Spring, Arm Lock	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028594	Pin, Arm Lock, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1032244	Grip, Foam Hand (9" L)	1	1	$2.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1090768	Kit, Lock Handle w/Rivets (Pair)	2	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1028645	Rivet	1	6	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1065936	Plug, Pivot	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1067734	Plug Button, Black (5/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1068416	Arm Base Assembly, Black - Right (16-19" D)	1	1	$94.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1068417	Arm Base Assembly, Black - Left (16-19" D)	1	1	$94.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1067761	Arm Base Assembly, 1" Lower, Black - Right (16-19" D)	1	1	$94.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1067762	Arm Base Assembly, 1" Lower, Black - Left (16-19" D)	1	1	$94.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1035065	Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK	1	1	$98.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 5-12
B	All seat depths will use the 16-19" deep replacement components only.

Catalog Literature

Parts Books for TDX® SC (CGE option included) and TDX® SPREE (CGE standard)
