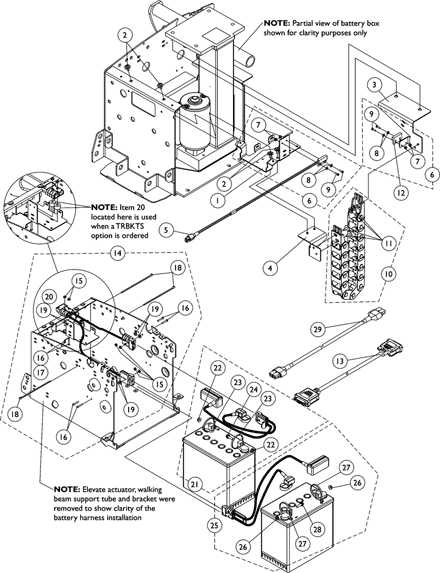

Battery Wire Harnesses - Sensor Proximity Switch - Extension Cables & Energy Chain - All Elevate Systems

Print this page

Battery Wire Harnesses, Sensor Proximity Switch, Extension Cables and Energy Cha

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1124657

NLA - Bracket, Wire Harness Mounting, Black

N/A

Create/add to Wishlist

1114308

Screw, Phillips Pan Head Tap (#10-32 x 1/2")

$10.00

Create/add to Wishlist

1124654

NLA - Bracket, Upper Energy Chain Mounting, Black

N/A

Create/add to Wishlist

1124655

NLA - Bracket, Lower Energy Chain Mounting, Black

N/A

Create/add to Wishlist

1122586

Sensor, Proximity Switch (30 1/4" L)

$55.00

Create/add to Wishlist

1125742

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Nut, Hex Keps (#4-40)	1	2
8	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
9	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Nut, Hex Keps (#4-40)	1	2
8	NLA - Washer, Plain (1/8 x 5/16 x 1/32")	1	2
9	NLA - Screw, Phillips Pan Head (#4-40 x 3/8")	1	2

NLA - Kit, Sensor Proximity/Actuator Switch Mounting Hardware

Create/add to Wishlist

1125745

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2
11	Screw, Phillips Pan Head Tap (#10-32 x 1/2")	1	2

Kit, Energy Chain with Mounting Hardware

Create/add to Wishlist

1024001

Sensor, Actuator Switch

$21.00

Create/add to Wishlist

1123277

NLA - Cable, Joystick Extension (48")

N/A

Create/add to Wishlist

1125743

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	NLA - Nut, Keps (#6-32)	1	6
16	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	6
18	Tie Wrap (5-5/8" L)	1	3
19	Washer (1/4 x 1/2 x 1/16")	1	4
15	NLA - Nut, Keps (#6-32)	1	6
16	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	6
18	Tie Wrap (5-5/8" L)	1	3
19	Washer (1/4 x 1/2 x 1/16")	1	4

Kit, Battery Harness with Mounting Hardware, Elevate

N/A

Create/add to Wishlist

1141968

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	NLA - Nut, Keps (#6-32)	1	6
16	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	4
17	NLA - Screw, Phillips Pan Head (#6-32 x 1-1/8")	1	2
18	Tie Wrap (5-5/8" L)	1	3
19	Washer (1/4 x 1/2 x 1/16")	1	4
20	NLA - Spacer (1/4 x 5/8 x 3/8")	1	2
15	NLA - Nut, Keps (#6-32)	1	6
16	NLA - Screw, Phillips Pan Head (#6-32 x 7/8")	1	4
17	NLA - Screw, Phillips Pan Head (#6-32 x 1-1/8")	1	2
18	Tie Wrap (5-5/8" L)	1	3
19	Washer (1/4 x 1/2 x 1/16")	1	4
20	NLA - Spacer (1/4 x 5/8 x 3/8")	1	2

NLA - Kit, Battery Harness with Mounting Hardware, Elevate with TRBKTS option

N/A

Create/add to Wishlist

See Note

See Footnote

Create/add to Wishlist

16721X000

Locknut (1/4-20)

$10.00

Create/add to Wishlist

1095502

NLA - Package, Tie Wrap (11-1/2" L)

N/A

Create/add to Wishlist

1096799

NLA - Screw, Hex Flange Whiz Lock (1/4-20 x 7/8")

N/A

Create/add to Wishlist

1125741

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
26	Locknut (1/4-20)	1	2
27	Tie Wrap (11-1/2" L)	1	4
28	NLA - Screw, Hex Flange Whiz Lock (1/4-20 x 7/8")	1	2
28	NLA - Screw, Hex Flange Whiz Lock (1/4-20 x 7/8")	1	2
26	Locknut (1/4-20)	1	2
27	Tie Wrap (11-1/2" L)	1	4

NLA - Kit, Front Battery Harness with Terminal Hardware

N/A

Create/add to Wishlist

1126173

Harness, Elevate Actuator Extension

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 7-9
B	Includes the Battery Harness and items 15, 16, 18 and 19
C	Includes the Battery harness and items 15-20
D	Rear Battery Harness Kit that included the Rear Battery Harness is no longer available as a service part.
E	Includes the Front Battery Harness and items 26-28
F	Includes the Energy Chain and item 11
