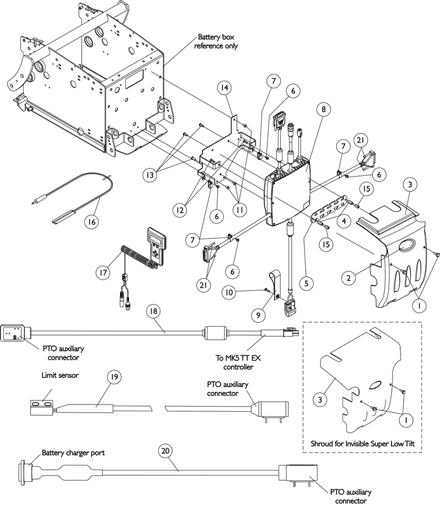

Electronics - MK5 TT (TrueTrack) EX Controller - Programmer - Shroud Cover & Hardware
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Used with MK5 TT (TrueTrack) EX controller for Powered Seating Systems. |
| B | Used on Super Low Tilt system |
| C | Cable sensor is used when a manual recliner is present |
| D | Item 15 is increased to a quantity of 4 when an Invisible Super Low Tilt is present |
| E | Not Shown |
| F | Kit includes the Controller, Instruction Sheet and a Controller Gasket Kit part #1134214. Part # 1112979 labeled on the controller is listed for reference only, refer to kit #1145076 when ordering. The MK5 TT EX Controller is used for GB Motors only. |
| F1 | Item #18 Power Auxillary Cable is required to function any powered seating system. |
| G | Cable Option with Charger Connector is present when a combination MKIV controller and joystick have been ordered as a "special" on-chair configuration. |
| G1 | When a MKIV joystick is ordered "special" on-chair to adapt to a MK5 EX controller, a (6 pin to 15 pin adapter cable) will be present. A replacement (6 pin to 15 pin adapter cable) must be ordered from ASL (Adaptive Switch Labs) at 1-800-626-8698 |
| H | After 6/16/05 the MK5 TTEX Controller motor cables were shortened from approximately 12" to 9". Items 6 and 7 are no longer used after 6/16/05. |
| I | Before 5/24/04 |
| J | After 5/23/04 the Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch |
| K | Kit was created 10/26/07 and attaches to the controller motor cables. Includes 2 ea. GB HD Controller Gasket Connectors, 2 ea. Silicon Lubricant Packets, 1 ea. Instruction Sheet. Individual components are non-saleable. |
| K1 | The kit can retrofit to existing GB HD controllers in the field |
| L | Part #1145076 "Kit, MK5 TT-EX Controller w/ Installation Instruction Sheet" is no longer available for sale. As of 7/24/13 the MK5 TT (TrueTrack) EX Controller is no longer a repairable item. |
