EQUIPMENT US Site

1-5

1072125

Lower Armrest Base Assembly, Black - Right

0

1

Create/add to Wishlist

1-5

1072126

Lower Armrest Base Assembly, Black - Left

0

1

Create/add to Wishlist

1

1072647

Lower Armrest Weld Assembly, Black - Right

1

0

Create/add to Wishlist

1

1072648

Lower Armrest Weld Assembly, Black - Left

1

0

Create/add to Wishlist

2

1072133

Guard, Skirt - Right

1

0

Create/add to Wishlist

2

1072134

Guard, Skirt - Left

1

0

Create/add to Wishlist

3

1028645

Rivet

1

0

$10.00

Create/add to Wishlist

4

AG44

NLA - Silencer (3/4)

1

0

N/A

Create/add to Wishlist

5

ALK

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Knob, Black	1	1
3	Spring, Lift Pin	1	1
4	NLA - Pin, Lift	1	1
	NLA - Knob, Black	1	1
	Spring, Lift Pin	1	1
	NLA - Pin, Lift	1	1
	NLA - Knob, Black	1	1
	Spring, Lift Pin	1	1
	NLA - Pin, Lift	1	1

Kit, Arm Lock

1

0

$10.00

Create/add to Wishlist

1108134

NLA - Knob, Black

1

N/A

Create/add to Wishlist

1108188

Spring, Lift Pin

1

N/A

Create/add to Wishlist

1132724

NLA - Pin, Lift

1

N/A

Create/add to Wishlist

6-10

450106

Arm Top Assembly, Full Pad - Right

0

1

Create/add to Wishlist

6-10

1130082

Arm Top Assembly, Full Pad - Left

0

1

Create/add to Wishlist

6-10

450105

Arm Top Assembly, Desk Pad - Left

0

1

Create/add to Wishlist

6-10

1130081

Arm Top Assembly, Desk Pad - Right

0

1

Create/add to Wishlist

6

440132

Arm Top Weld Assembly Chrome Full Length

1

0

Create/add to Wishlist

6

440131

Arm Top Weld Assembly Chrome Desk Length

1

0

Create/add to Wishlist

7

AP6

Screw, Pan Head (#10-24 x 1-1/4")

2

0

Create/add to Wishlist

8

1027095

Plug Button, Black (7/8")

2

0

$9.20

Create/add to Wishlist

9

AP3BLK

Arm Pad, Full Length

1

0

Create/add to Wishlist

9

8881053577

Kit, Arm Pad w/ Screws, Full Length (14" L x 2" W) (Pair)

2

0

$53.00

B

Create/add to Wishlist

9

8881011810

NLA - Arm Pad, Desk Length w/ Law Label

1

0

N/A

B

Create/add to Wishlist

9

8881053578

Kit, Arm Pad w/ Screws, Desk Length (9" L x 2" W) (Pair)

2

0

$53.00

B

Create/add to Wishlist

10

1077274

Grip, Arm Extension

1

0

Note Code	Definition
A	Included in ALK Kit.
B	Specify U67 Black when ordering.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

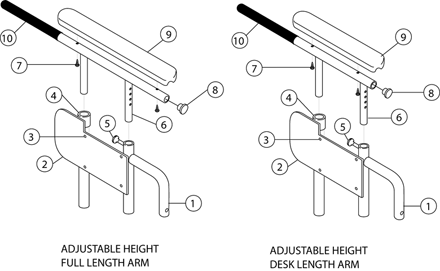

Adjustable Height Arm Assemblies
