EQUIPMENT US Site

1

1060425

NLA - Footplate, Adjustable Angle, Small, Black (3-1/4" W x 8" L)

1

N/A

Create/add to Wishlist

1060426

NLA - Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

N/A

Create/add to Wishlist

1060427

NLA - Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

N/A

Create/add to Wishlist

1062568

Footplate, Extra Large Adjustable Angle (6-1/4" W x 8" L)

1

Create/add to Wishlist

2

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

$9.20

Create/add to Wishlist

3

1048816

Screw, Nylon Adjustment (1/2-13 x 7/8")

1

$10.00

Create/add to Wishlist

4

1052102

Hinge, Footplate - Right

1

$57.00

Create/add to Wishlist

1052103

Hinge, Footplate - Left

1

$57.00

Create/add to Wishlist

5

1120379

Tube, Pivot/Slide, Straight, Aluminium, Black (9-7/8" L)

1

$25.00

Create/add to Wishlist

1120385

Tube, Pivot/Slide, Straight - Black (11-7/8" L)

1

$31.00

Create/add to Wishlist

6

1022831

Screw, Socket Button Head (1/4-20 x 1-7/8")

1

$8.00

Create/add to Wishlist

7

1026900

Washer (1/4 x 23/32 x 1/16")

1

$1.20

Create/add to Wishlist

8

1016301

Washer, Nylon (5/16 x 7/8 x 1/8")

1

$10.00

Create/add to Wishlist

9

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

$8.00

Create/add to Wishlist

10

1026907

Washer (1/4 x 1/2 x 1/16")

1

$7.20

Create/add to Wishlist

11

1025736

Locknut (1/4-20)

1

2

$7.20

Create/add to Wishlist

12

1082686

Nut, Barrel, Hex Head (1/4-20 x 11/16")

1

2

$9.20

Create/add to Wishlist

13

1058517

Clamp, Footplate

1

$13.50

Create/add to Wishlist

14

See Chart

Added to Cart

Straight Slide Tube (9-7/8")	Right	Left
14-15" Wide (5-1/4" Footplate)	1060432	1060433
16-17" Wide (6-1/4" Footplate)	1062572 MSRP: $104.00	1062573 MSRP: $104.00
18-22" Wide (7-1/4" Footplate)	1068620 MSRP: $114.00	1068621 MSRP: $114.00

ALPT Straight Slide Tube (Aluminum 11-7/8")	Right	Left
14-15" Wide (5-1/4" Footplate)	1060440- NLA	1060441
16-17" Wide (6-1/4" Footplate)	1062578 MSRP: $99.00	1062579 MSRP: $99.00
18-22" Wide (7-1/4" Footplate)	1068622	1068623

Create/add to Wishlist

#14 60 Degree, 60 Degree MFX, 70 Degree Non-Tapered and ELR's

N/A

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

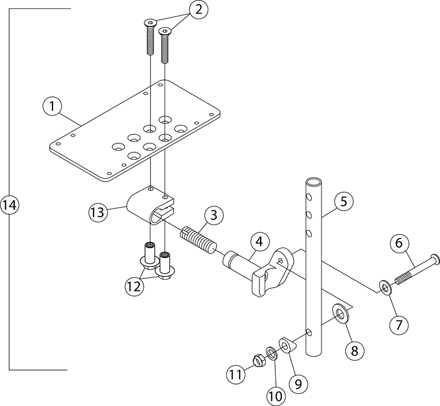

Front Riggings - Pivot/Slide Tube w/ Adjustable Angle Footplate - AT5543 - 60 Degree, 60 Degree MFX & 70 Degree Swingaway Supports
