Wheel Locks - Hublock Replacement Kits - Attendant - User Hand & Foot Operated (Before 11/01/07)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1152207

Part/Kit Description	Qty/Pkg	Qty/Asbly
Actuator Assembly, Foot Operated	1	1
Latch with Cable Assembly, Hublock - Right	1	1
Latch with Cable Assembly, Hublock - Left	1	1
Locknut (1/4-28)	1	6
NLA - Service Manual, Hublock	1	1

Kit, Hublock Replacement, Foot Operated

$315.00

A ,B

Create/add to Wishlist

1153658

Part/Kit Description	Qty/Pkg	Qty/Asbly
Actuator Assembly, Foot Operated	1	1
Latch with Cable Assembly, Hublock - Right	1	1
Latch with Cable Assembly, Hublock - Left	1	1
Locknut (1/4-28)	1	6
NLA - Service Manual, Hublock	1	1

NLA - Kit, Hublock Replacement, Foot Operated

N/A

A ,B

Create/add to Wishlist

1153657

Part/Kit Description	Qty/Pkg	Qty/Asbly
Actuator w/ Cable Assembly, Hand Operated	1	1
Hublock Hand Operated Latch Assembly	1	1
Hublock Hand Operated Latch Assembly	1	1
Screw, Socket Button Head (#10-32 x 1")	1	2
Box, Junction Cable	1	2
Pin, Dowel (3/16 x 1/2")	1	1
Locknut (#10-32)	1	2
Bracket, Junction Cable, Black	1	1
Tie Wrap (5-5/8" L)	1	1
Locknut (1/4-28)	1	4
Box, Junction Cable	1	1
Instruction Sheet	1	1

NLA - Kit, Hublock Replacement, Hand Operated

N/A

Create/add to Wishlist

1153655

Part/Kit Description	Qty/Pkg	Qty/Asbly
Actuator w/ Cable Assembly, Hand Operated	1	1
Hublock Hand Operated Latch Assembly	1	1
Hublock Hand Operated Latch Assembly	1	1
Screw, Socket Button Head (#10-32 x 1")	1	2
Box, Junction Cable	1	2
Pin, Dowel (3/16 x 1/2")	1	1
Locknut (#10-32)	1	2
Bracket, Junction Cable, Black	1	1
Tie Wrap (5-5/8" L)	1	1
Locknut (1/4-28)	1	4
Box, Junction Cable	1	1
Instruction Sheet	1	1

Kit, Hublock Replacement, Hand Operated

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition

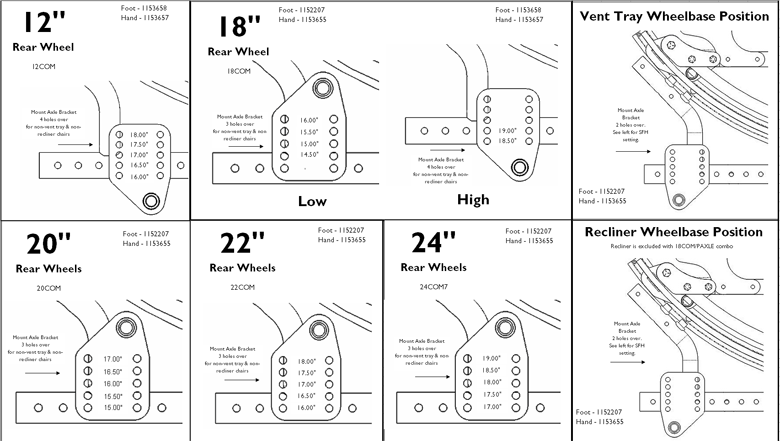

A	Refer to image in order to determine appropriate selection.
B	Part number 1130215 is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.

Catalog Literature

Parts Books for Solara® 2G Spree GT™
