Controller - Programmer - Shroud Cover - MK6i TRAM w/ Mtg. Hdwr. - 3G Storm w/ 4 Pole Motors & Formula CG w/ Vent

Print this page

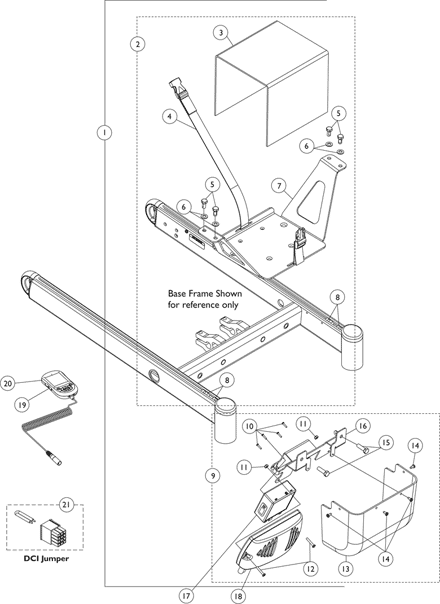

Controller, Programmer, Shroud Cover and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1146618

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Tray, Vent Battery	1	1
8	T-Nut (5/16-18)	1	4
10	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4
11	Locknut (#8-32)	1	2
12	Screw, Phillips Pan Head (#8-32 x 1")	1	2
13	Shroud, Controller Cover (for Vent Option)	1	1
14	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
15	Screw, Hex Head w/ Patch (5/16-18 x 1")	1	2
16	Bracket, Mounting, Black (For Vent Option)	1	1
3	Shroud, Vent Battery	1	1
4	NLA - Battery Strap Assembly	1	1
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
3	Shroud, Vent Battery	1	1
4	NLA - Battery Strap Assembly	1	1
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
7	Tray, Vent Battery	1	1
8	T-Nut (5/16-18)	1	4
10	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4
11	Locknut (#8-32)	1	2
12	Screw, Phillips Pan Head (#8-32 x 1")	1	2
13	Shroud, Controller Cover (for Vent Option)	1	1
14	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
15	Screw, Hex Head w/ Patch (5/16-18 x 1")	1	2
16	Bracket, Mounting, Black (For Vent Option)	1	1

NLA - Kit, Vent Battery Tray, MK690 w/ ACC Controller & MK6i TRAM Mtg Hdwr

N/A

Create/add to Wishlist

1148656

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Shroud, Vent Battery	1	1
4	NLA - Battery Strap Assembly	1	1
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
7	Tray, Vent Battery	1	1
8	T-Nut (5/16-18)	1	4
2	Shroud, Vent Battery	1	1
3	NLA - Battery Strap Assembly	1	1
4	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
5	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
6	Tray, Vent Battery	1	1
7	T-Nut (5/16-18)	1	4
3	Shroud, Vent Battery	1	1
4	NLA - Battery Strap Assembly	1	1
5	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
6	Washer, Flat (5/16 x 5/8 x 1/16")	1	4
7	Tray, Vent Battery	1	1
8	T-Nut (5/16-18)	1	4

NLA - Kit, Vent Battery Tray w/ Hardware

N/A

Create/add to Wishlist

1148655

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4
11	Locknut (#8-32)	1	2
12	Screw, Phillips Pan Head (#8-32 x 1")	1	2
13	Shroud, Controller Cover (for Vent Option)	1	1
14	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
15	Screw, Hex Head w/ Patch (5/16-18 x 1")	1	2
16	Bracket, Mounting, Black (For Vent Option)	1	1
	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4
9	Locknut (#8-32)	1	2
10	Screw, Phillips Pan Head (#8-32 x 1")	1	2
11	Shroud, Controller Cover (for Vent Option)	1	1
12	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
13	Screw, Hex Head w/ Patch (5/16-18 x 1")	1	2
14	Bracket, Mounting, Black (For Vent Option)	1	1
10	Screw, Phillips Pan Head (#4-40 x 1/2")	1	4
11	Locknut (#8-32)	1	2
12	Screw, Phillips Pan Head (#8-32 x 1")	1	2
13	Shroud, Controller Cover (for Vent Option)	1	1
14	Screw, Phillips Pan Head Tap (#8-32 x 3/8")	1	4
15	Screw, Hex Head w/ Patch (5/16-18 x 1")	1	2
16	Bracket, Mounting, Black (For Vent Option)	1	1

NLA - Kit, MK690 w/ ACC Controller/TRAM Mounting Bracket, Shroud Cover and Mounting Hardware

N/A

Create/add to Wishlist

1140098

Module, Tilt Recline Actuator (TRAM) - MK6i (36" L)

$845.00

Create/add to Wishlist

1140098E

NLA - WARR RPLMT - Module, Tilt Recline Actuator (TRAM) - MK6i

N/A

Create/add to Wishlist

1136898

Controller, MK690 w/ ACC

$1,250.00

Create/add to Wishlist

1139985

Programmer, MK6i Remote

$882.00

Create/add to Wishlist

1142215

Kit, MK6i Remote Programmer w/ SD Professional Card & Card Holder (1813M6)

$1,011.00

Create/add to Wishlist

1139997

Cover, SD Card Slot

$10.00

Create/add to Wishlist

1140125

NLA - Jumper, DCI

N/A

Create/add to Wishlist

1101400

Harness, ELRPW Power Legrest - Right

$63.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-8 and 10-16
B	Includes items 3-8
C	Includes items 10-16
D	A DCI Jumper is used when an MPJ+ Joystick is used
E	Not Shown. ELRPW Power Legrest Harness part #1101400 is used to connect between the TRAM Module and the Tilt Actuator as well
F	The MK6i Programmer Manual (1141471) is not included and is strongly recommended the guide be ordered or downloaded from Literature Fulfillment.

Catalog Literature

Parts Books for Electronics MK6i™
