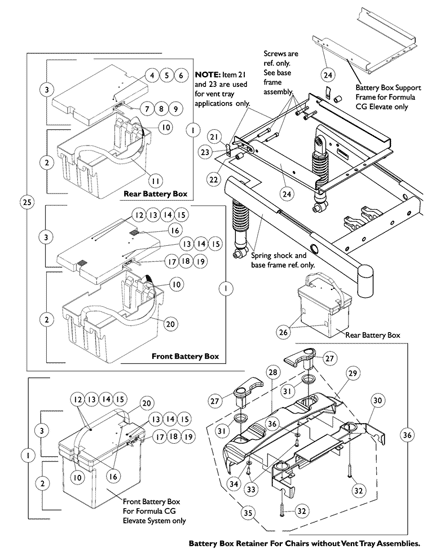

Battery Boxes & Support Frame - Group 24 Batteries
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 2 and 3. Used with all 4-pole motors, GB non-heavy duty and [GB heavy duty TTHD motors before 1/26/04 (3/15/04 for VA Government orders)] |
| B | Includes items 10 and 20 |
| C | Includes items 10 and 11 |
| D | Includes items 31-34 |
| E | Includes items 27-34 |
| F | Not Shown |
| G | Includes items 1 and 21-24. Used with all 4-pole motors, GB non-heavy duty and [GB heavy duty TTHD motors before 1/26/04 (3/15/04 for VA Government orders)] |
| H | Includes items 1, 22 and 24. Used with all 4-pole motors, GB non-heavy duty and [GB heavy duty TTHD motors before 1/26/04 (3/15/04 for VA Government orders)] |
| I | Used with all 4-pole motors, GB non-heavy duty and [GB heavy duty TTHD motors before 1/26/04 (3/15/04 for VA Government orders)] |
| J | Used with GB heavy duty TTHD motors after 1/25/04 only (3/14/04 for VA Government orders) |
| K | Battery box lids made after 1/25/04 (3/14/04 for VA Government orders) use a non-replaceable 125 Amp. fuse. A new battery box lid must be ordered when the 125 Amp. fuse is required. |
| L | Includes items 1 and 21-24. Used with GB heavy duty TTHD motors after 1/25/04 only (3/14/04 for VA Government orders). The battery box lids contain the 125 Amp. non-replaceable fuse |
| M | Includes items 1, 22 and 24. Used with GB heavy duty TTHD motors after 1/25/04 only (3/14/04 for VA Government orders). The battery box lids contain the 125 Amp. non-replaceable fuse |
| N | Used with 4-Pole motors only with Formula CG Elevate System |
| O | Decal not used when GB Heavy Duty Motors are used |
| P | Used with GB Heavy Duty TTHD motors with Formula CG Elevate System |
| Q | Retainer Bar used when Vent Tray is present |
| R | Part #1023631 is no longer available as a service part individually. See item 35 and order part #1104871 as a replacement. |
