Casters & Forks

Print this page

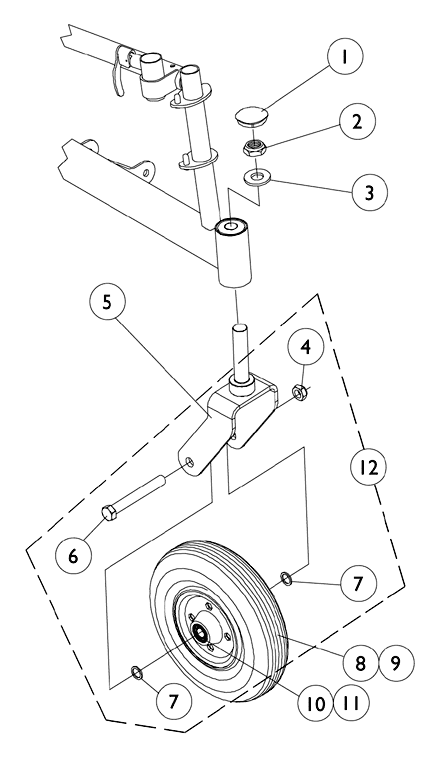

Front Casters and Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1056739	Plug Button, Head Tube, Black	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1028550	Locknut (5/8-18)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1041444	Washer, Nylon (5/8 x 1-5/16 x 1/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930331	NLA - Locknut (7/16-20")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1058556	NLA - Fork and Stem (8" Caster)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	8881058562	NLA - Fork, Caster, Standard (8")	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1025726	Screw, Hex Head (7/16-20 x 3-1/4")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025724	Washer, Steel (15/32 x 5/8 x 3/64")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1006058	NLA - Caster, Semi Pneumatic (8")	1	1	N/A	C ,D ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1068311	NLA - Caster, Semi Pneumatic, Charcoal (8")	1	1	N/A	C ,D ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1070811	Wheel Assembly, Semi-Pneumatic, Urethane, Light Grey (8" x 1-3/4")	1	1	$67.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1002002	Wheel Assembly w/ Bearings, Pneumatic (8" x 2")	1	1	$122.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	40176X034	Tire, Pneumatic (8" x 2")	1	1	$52.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1034942	Tube, Pneumatic Inner (8 x 2")	1	1	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1006049	Bearing (7/16")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1020592	Spacer, Bearing (7/16 x 5/8 x 1-3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1042489	Hardware, Caster Axle	1	2	$29.00	H	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1071666	Wheel Assembly, Semi-Pneumatic, Urethane, Light Grey (8" x 1-3/4") (Pair)	2	1	$163.00	I	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Order caster forks in pairs for chairs manufactured before 3/13/98.
B	Specify frame color when ordering, see page titled "Frame Finishes, Touch-Up Paints and Upholstery Options."
C	Includes items 10 and 11
D	Order in pairs (#1071666) for chairs manufactured before 6/9/97.
E	Before 1/15/97
F	After 1/15/97
G	After 6/8/97
H	Includes items 4, 6, and 7 to accommodate 1 side only.
I	Not Shown

Catalog Literature

Parts Books for Storm Series® Power 9000 (After 11/14/1995)
