Battery Box Hardware

Print this page

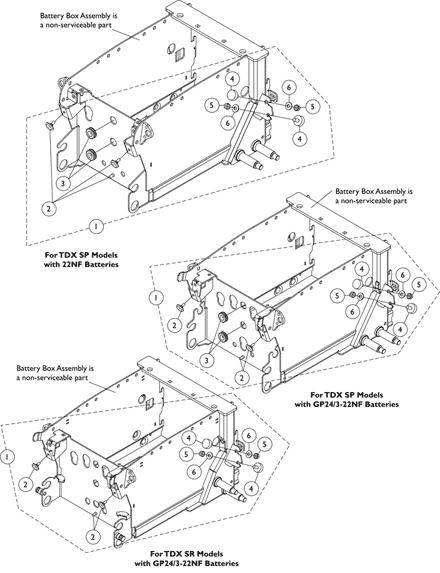

Battery Box Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1145071

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bumper, Rubber (7/8" Diameter x 3/16")	1	3
3	Grommet, Rubber (9/16 ID x 1-1/16 OD x 3/8")	1	2
4	Bumper, Rubber (1" Diameter x 3/8")	1	4
5	NLA - Nut, Keps (5/16-18)	1	4
6	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
2	Bumper, Rubber (7/8" Diameter x 3/16")	1	3
3	Grommet, Rubber (9/16 ID x 1-1/16 OD x 3/8")	1	2
4	Bumper, Rubber (1" Diameter x 3/8")	1	4
5	NLA - Nut, Keps (5/16-18)	1	4
6	Washer, Steel (5/16 x 3/4 x 1/16")	1	4

Kit, Battery Box Rubber Bumper and Grommet Hardware

1

1

A

Create/add to Wishlist

Create/add to Wishlist

1

1149335

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Bumper, Rubber (7/8" Diameter x 3/16")	1	3
4	Bumper, Rubber (1" Diameter x 3/8")	1	4
5	NLA - Nut, Keps (5/16-18)	1	4
6	Washer, Steel (5/16 x 3/4 x 1/16")	1	4

Kit, Battery Box Rubber Bumper and Grommet Hardware For TDX SR

1

1

B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-6 and is used for both 22NF NARROW Battery Box and/or GP24/3-22NF WIDE Battery Boxes For TDX SP models
B	Includes items 2, 4-6 and is used for GP24/3-22NF WIDE Battery Box for TDX SR models. TDX SR with Elevate will only use (2) 22NF batteries in a WIDE Battery Box

Catalog Literature

Parts Books for TDX®SP/SP-GT/SR
