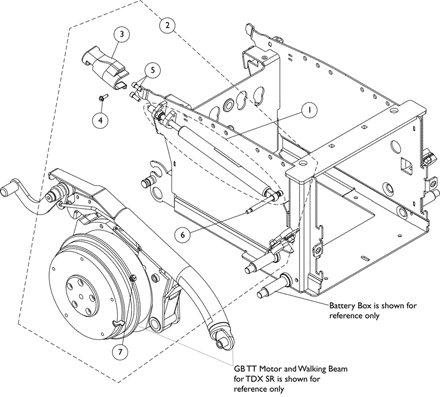

Cylinders - Locking Gas - TDX SR

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1144661

Cylinder, Locking Gas

$427.00

Create/add to Wishlist

1144655

Cylinder, Locking Gas

$415.00

Create/add to Wishlist

1149340

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Boot - Right	1	1
4	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	1
5	Screw, Socket Head (1/4-20 x 5/8")	1	2
6	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1

Kit, Locking Gas Cylinder Mounting Hardware TDX SR - Right

$25.00

Create/add to Wishlist

1149341

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Boot - Left	1	1
4	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	1
5	Screw, Socket Head (1/4-20 x 5/8")	1	2
6	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
7	Locknut (1/4-20)	1	1

Kit, Locking Gas Cylinder Mounting Hardware TDX SR - Left

$25.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-7
B	Used for 300 Lb. User Weight Limit
C	Used for 400 Lb. User Weight Limit

Catalog Literature

Parts Books for TDX®SP/SP-GT/SR
