1 |
1142192
| Item |
Part/Kit Description |
Qty/Pkg |
Qty/Asbly |
|
2 |
Nut, Nylon (5/16-24") Hex Cap |
1 |
8 |
|
3 |
Washer, Flat (5/16 x 5/8 x 1/16") |
1 |
8 |
|
4 |
Bushing, Flange |
1 |
8 |
|
5 |
Bracket, Lower Vent, Black |
1 |
4 |
|
6 |
Washer, Nylon (5/16 x 7/8 x 1/8") |
1 |
4 |
|
7 |
Plate, Support Vent - Black |
1 |
2 |
|
8 |
NLA - Bushing (3/8") |
1 |
4 |
|
9 |
Bracket, Lower Vent Mounting, Black - Left |
1 |
1 |
|
10 |
Lockwasher, Split (1/4") |
1 |
6 |
|
11 |
Screw, Hex Head (1/4-20 x 1-1/4") |
1 |
6 |
|
12 |
NLA - Screw Allen Head (5/16-24 x 1-1/4") |
1 |
8 |
|
13 |
Bracket, Lower Vent Mounting, Smart, Black - Right |
1 |
1 |
|
14 |
Locknut (1/4-20) |
1 |
5 |
|
15 |
Screw, Socket Button (1/4-20 x 3/4") |
1 |
4 |
|
16 |
Washer (1/4 x 1/2 x 1/16") |
1 |
4 |
|
17 |
Washer, Nylon (5/16 x 11/16 x 1/16") |
1 |
2 |
|
18 |
Bracket, Hanger Vent BPO, Black |
1 |
1 |
|
19 |
Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20) |
1 |
1 |
|

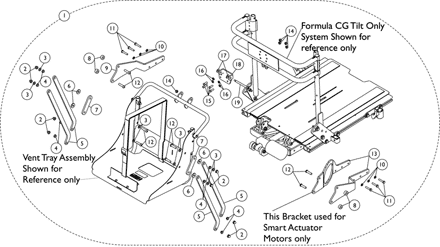

Kit, Vent Tray Mounting Hardware (Smart) for Conventional Tilt, ABS Curved Tilt, & Tilt w/ BPO Option. |
1 |
1 |
|
B |
|
