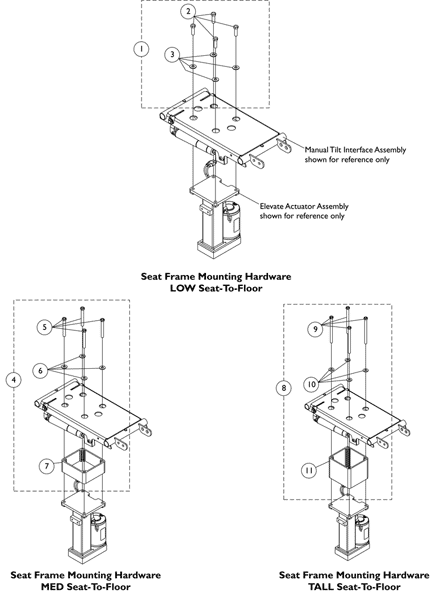

Frames - Seat ADJASBA Mtg. Hdwr. - Manual Tilt - TDX SPREE (12" - 16" W)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1151874

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Hex Head (3/8-16 x 1-1/4")	1	4
3	NLA - Washer, Steel (3/8 x 7/8 x 1/16")	1	4

NLA - Kit, Seat Frame Mounting Hardware, Low Seat-To-Floor (12"-16" Wide)

N/A

Create/add to Wishlist

1151875

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	NLA - Screw, Hex Head (3/8-16 x 3")	1	4
6	NLA - Washer, Steel (3/8 x 7/8 x 1/16")	1	4
7	NLA - Bracket, 2" Seat-To-Floor	1	1

NLA - Kit, Seat Frame Mounting Hardware, Med Seat-To-Floor (12"-16" Wide)

N/A

Create/add to Wishlist

1151876

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	NLA - Screw, Hex Head (3/8-16 x 5")	1	4
10	NLA - Washer, Steel (3/8 x 7/8 x 1/16")	1	4
11	NLA - Bracket, 4" Seat-To-Floor	1	1

NLA - Kit, Seat Frame Mounting Hardware, Tall Seat-To-Floor (12"-16" Wide)

N/A

Create/add to Wishlist

1118889

NLA - Washer, Steel (3/8 x 7/8 x 1/16")

N/A

Create/add to Wishlist

1151872

NLA - Screw, Hex Head (3/8-16 x 3")

N/A

Create/add to Wishlist

1151873

NLA - Screw, Hex Head (3/8-16 x 5")

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 and 3
B	Includes items 5-7
C	Includes items 9-11

Catalog Literature

Parts Books for TDX® SC (CGE option included) and TDX® SPREE (CGE standard)
