EQUIPMENT US Site

1

1154098

NLA - Control Panel w/ SensO2 Assembly - PO2AW

1

N/A

Create/add to Wishlist

2

1110561

Flowmeter without Palnuts - 5 Liter

1

$79.00

Create/add to Wishlist

3

2000473

Connector, Barbed (1/4")

1

$11.00

Create/add to Wishlist

4

1143503

Horn/Alarm Assembly

1

$16.00

Create/add to Wishlist

5

2002939

NLA - Tech Only - Hour Meter Assembly with Clip

1

N/A

Create/add to Wishlist

6

1143486

PCB Assembly - PO2/PO2W

1

$372.00

Create/add to Wishlist

6

1143486E

WARR RPLMT - PCB Assembly - PO2/PO2W

1

Create/add to Wishlist

7

1143499

Screw, Phillips Hex Washer Head (#8-16 x 3/8)

1

2

$8.00

Create/add to Wishlist

8

1110824

NLA - Tech Only - Circuit Breaker (4 AMP)

1

N/A

Create/add to Wishlist

9

2001682

Tie Wrap (8" L)

1

2

$11.00

Create/add to Wishlist

10

1110473

Tubing, PVC (1/4 x 1-3/4")

1

2

$10.00

Create/add to Wishlist

11

2000436

Check Valve, Barb (5/16")

1

$11.00

Create/add to Wishlist

12

1143144

Tubing, PVC (1/4 x 5")

1

$10.00

Create/add to Wishlist

13

P0750X030

Filter, Patient HEPA Outlet

1

$14.00

Create/add to Wishlist

14

2000507

Palnut (9/16-18)

1

3

$10.00

Create/add to Wishlist

15

1139950

Switch, Powe On/Off

1

$11.00

Create/add to Wishlist

16

60125500

Cord, Elastic

1

$8.00

Create/add to Wishlist

17

1006525

Tie Wrap (3-29/32" L)

1

$10.00

Create/add to Wishlist

18

1095497

Decal, Invacare Logo (1.6)

1

$7.00

Create/add to Wishlist

19

1143479

Label, LED - PO2/PO2V/PO2W

1

$10.00

Create/add to Wishlist

20

1143469

Panel, Control

1

$30.00

D

Create/add to Wishlist

60123182

Part/Kit Description	Qty/Pkg	Qty/Asbly
Plate, External Outlet Port	1	1
Plate, Internal Outlet Port	1	1
Washer, Foam	1	1
Tie Wrap (8" L)	1	1
Manual, Service for Control Panel Repair	1	1
Plate, Internal Outlet Port	1	1
Plate, Internal Outlet Port	1	1
Tie Wrap (8" L)	1	1
Manual, Service for Control Panel Repair	1	1
Plate, External Outlet Port	1	1
Washer, Foam	1	1
Washer, Foam	1	1
Tie Wrap (8" L)	1	1
Plate, External Outlet Port	1	1
Manual, Service for Control Panel Repair	1	1

Kit, Control Panel Repair

1

$45.00

C ,D

Create/add to Wishlist

21

2001764

Jumper Wire Assembly

1

$19.00

Create/add to Wishlist

22

1143501

NLA - Power Jumper Assembly

1

N/A

Create/add to Wishlist

23

1112562

NLA - Tech Only - Seal, Circuit Breaker

1

N/A

Create/add to Wishlist

1154101

NLA - Tech Only - Main Harness Assembly

1

N/A

A ,B

Create/add to Wishlist

1143526

Wire Harness Valve Assembly

1

$10.00

A ,B

Note Code	Definition
A	Not Shown.
B	Connects to PC Board.
C	Not Shown
D	Control Panel Repair Kit part #60123182 assembles to the Control Panel before attaching item #3 Brass Barbed Connector. This eliminates the need to replace a complete Control Panel.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

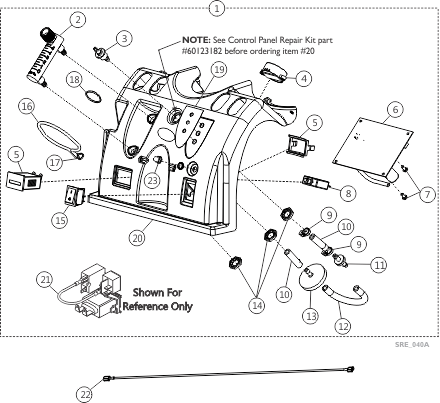

Control Panel & P.C. Board (Perfecto2 AW)
