Front Riggings - Footrest Supports, (Hemi) - PH93M2

Print this page

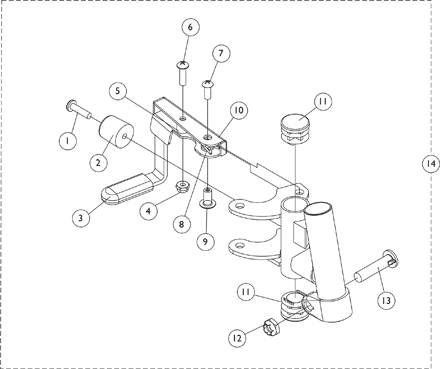

Footrest Supports, (Hemi) - PH93M2

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1030979	Screw, Phillips Pan Head Tap (#10-32 x 3/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1022874	Bumper	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1006490	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	60279X003	Locknut (#10-32)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	47565X057	Bushing (7/32 x 3/8 x 11/32")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	40163X008	Screw, Phillips Pan Head (#10-32 x 11/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	40163X002	Screw, Phillips Round Head (#10-32 x 1/2")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1008935	Spring, Release - Right	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1008936	Spring, Release - Left	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	67005X000	Rivnut (#10-32)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1114745	Handle, Release, Black - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1114746	Handle, Release, Black - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	60264X001	Locknut (5/16-24)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1122964	NLA - Footrest Support Assembly, Hemi, Black - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1122965	NLA - Footrest Support Assembly, Hemi, Black - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-13

Catalog Literature

Parts Books for TDX® SC (CGE option included) and TDX® SPREE (CGE standard)
