Arms - Mtg. Front/Rear Arm Socket Asbly. & Hdwr., (12"-16" W x 12"-15" D) - TDX SPREE

Print this page

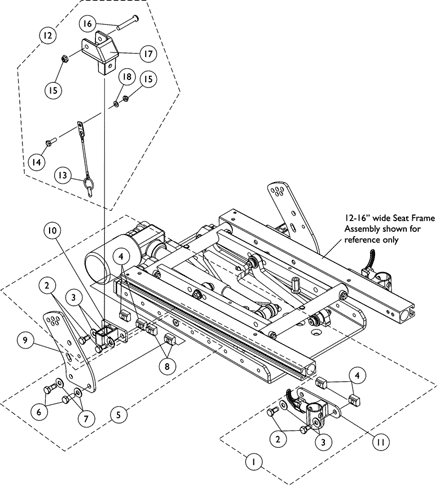

Front/Rear Arm Socket Assembly and Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1144596

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
4	T-Nut (5/16-18)	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
8	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
7	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
9	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
6	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
8	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
9	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4
2	Screw, Hex Head w/ Patch (5/16-18 x 5/8")	1	4
3	Washer, Steel (5/16 x 3/4 x 1/16")	1	4
4	T-Nut (5/16-18)	1	4

Kit, Front/Rear Arm Socket Asbly. Mtg. Hdwr. (12-16" Wide)

$58.00

Create/add to Wishlist

1144597

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
7	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
8	T-Nut (5/16-18)	1	2
6	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
7	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
8	T-Nut (5/16-18)	1	2
6	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
7	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
8	T-Nut (5/16-18)	1	2
6	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	2
7	Washer, Steel (5/16 x 3/4 x 1/16")	1	2
8	T-Nut (5/16-18)	1	2

Kit, Back Cane Bracket Mtg. Hdwr. 12-16" Wide

$30.00

Create/add to Wishlist

1146452

NLA - Bracket, Back Cane Mounting, Black

N/A

Create/add to Wishlist

1126142

Socket, Arm, Rear

$28.00

Create/add to Wishlist

1122619

Socket, Arm, Front - Right

$72.00

Create/add to Wishlist

1122620

Socket, Arm, Front - Left

$72.00

Create/add to Wishlist

1125736

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1
13	Pin, Pull	1	1
14	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
15	Locknut (1/4-20)	1	2
16	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
17	Clevis, Pivot	1	1
18	Washer (1/4 x 1/2 x 1/16")	1	1
12	Pin, Pull	1	1
13	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	1
14	Locknut (1/4-20)	1	2
15	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	1
16	Clevis, Pivot	1	1
17	Washer (1/4 x 1/2 x 1/16")	1	1

Kit, Swingaway Armrest Mounting Hardware

$33.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-4
B	Includes items 6-8
C	Includes items 13-18

Catalog Literature

Parts Books for Formula™CG Tilt (CGT) Powered Seating
