Aquatec® Series Bath Lifts Aquatec® F, Aquatec® R Aquatec® XL Canada
22299
⚠
Error
Maximum of three products are allowed for comparison.
Ok
Ok
Added to Cart

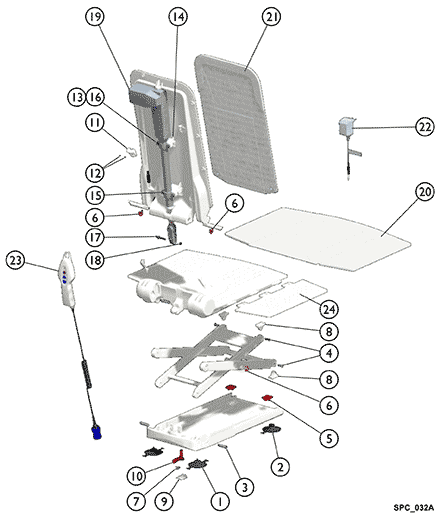

Aquatec F - Fixed Back Bath Lift
Print this page
Click to Enlarge
Item
Part/Kit
Part/Kit Description
Qty/Pkg
Qty/Asbly
MSRP
View Parts Notes
1+2
15353
Cups, Suction, Screw-In and Toggle (Set) (8 cm)
4
1
$13.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
3
16679
Bolt (10mm)
1
4
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
4
15105
Bolt for Gliding Shoe
1
4
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
5
15121
Cap for Suction Cup
1
2
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
6
15344
Washer, Securing
1
2
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
7
15415
Spring
1
1
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
8
16446
Shoe, Gliding
1
4
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
9
16448
Latch, Bushing
1
1
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
10
16649
Latch
1
1
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
11
16455
Holding Device (Excluding Screws)
1
1
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
12
15348
Screws, Phone Jack (40 x 22)
1
2
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
13
16781
Lens Head Screw DIN 7985, M5 x 30
1
4
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
14
16779
Nut for Actuator Fastening
1
4
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
15
16778
Clamp, Pipe, Actuator Fastening
1
2
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
16
16780
Washer A2 DIN 9021
1
4
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
17
16793
Axle
1
1
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
18
16456
Ring, Retaining, A2
1
2
$8.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
19
1471060
Actuator, Aquatec F
1
1
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
20
16606
Cover, Seat, White
1
1
$33.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
21
16604
Cover, Backrest, White
1
1
$25.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
22
16580
Charger, Battery
1
1
$24.02
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
23
1470902
Hand Control, Complete
1
1
$181.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
24
15892
Flap, Side with Film Hinge
1
2
$12.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
1470576
Cover Set, Seat and Backrest, White
1
1
$66.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
1563010
Frame, Backrest, Orca (Lifts built after May 2015)
1
1
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
1580158
Backrest and Seat Plate (Lifts built Before May 2015)
1
1
$124.00
Create/add to Wishlist
Create New
New Wishlist
Description
Create/add to Wishlist
New Wishlist
Description
Catalog Literature
Parts Books for Aquatec® Series Bath Lifts Aquatec® F, Aquatec® R Aquatec® XL Canada
