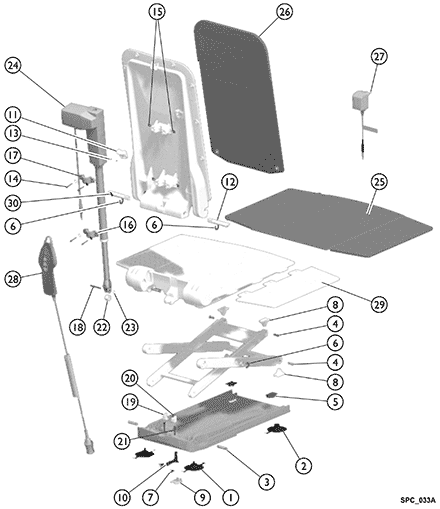

Aquatec R - Reclining Back Bath Lift

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP
1+2	15353	Cups, Suction, Screw-In and Toggle (Set) (8 cm)	4	1	$13.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	16679	Bolt (10mm)	1	4		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	15105	Bolt for Gliding Shoe	1	4		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	15121	Cap for Suction Cup	1	2		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	15344	Washer, Securing	1	2		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	15415	Spring	1	1	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	16446	Shoe, Gliding	1	4		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	16448	Latch, Bushing	1	1	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	16449	Latch	1	1	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	16455	Holding Device (Excluding Screws)	1	1		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1470579	Bolt, Right	1	1		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	15348	Screws, Phone Jack (40 x 22)	1	2		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	16781	Lens Head Screw DIN 7985, M5 x 30	1	4		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	16779	Nut for Actuator Fastening	1	4		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	16778	Clamp, Pipe, Actuator Fastening	1	2		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	16780	Washer A2 DIN 9021	1	4		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	16793	Axle	1	1	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	16791	Locking - Left	1	1	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	16792	Locking - Right	1	1	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	16794	Pressure Spring for Locking	1	2	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	16450	Pulley	1	1	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	16456	Ring, Retaining, A2	1	2	$8.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	16782	Actuator, Aquatec R	1	1	$174.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	16606	Cover, Seat, White	1	1	$33.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	16604	Cover, Backrest, White	1	1	$25.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	16580	Charger, Battery	1	1	$24.02	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1470902	Hand Control, Complete	1	1	$181.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	15892	Flap, Side with Film Hinge	1	2	$12.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	1470580	Bolt, Left	1	1		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470576	Cover Set, Seat and Backrest, White	1	1	$66.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470765	Cover, Seat, Blue	1	1	$33.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470766	Cover, Backrest, Blue	1	1	$27.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1470767	Cover Set, Seat and Backrest, Blue	1	1	$40.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	16440	Backrest, Frame	1	1	$122.00	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1471606	NLA - Sideflap, Aquatec	1	1	N/A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Catalog Literature

Parts Books for Aquatec® Series Bath Lifts Aquatec® F, Aquatec® R Aquatec® XL Canada
