Arm & Horn Assembly - Get-U-Up - GHS350

Print this page

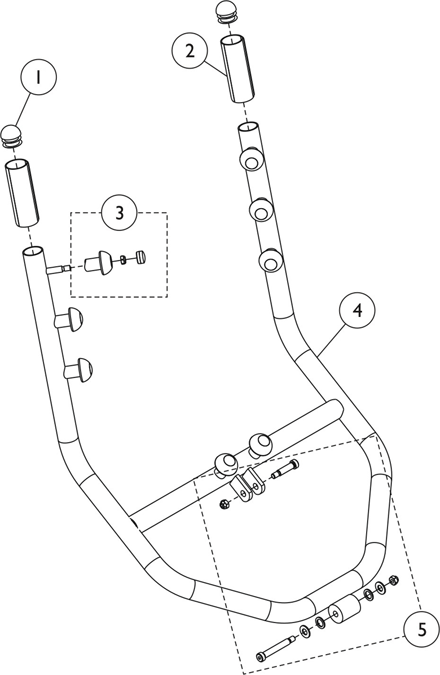

Arm and Horn Assembly

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1071249

Plug Button, Dome, Black (1-1/4")

1

2

$9.00

Create/add to Wishlist

Create/add to Wishlist

2

1076388

Pad, Grip

1

2

$14.00

Create/add to Wishlist

Create/add to Wishlist

3

1152592

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Knob, Hook, Black	1	8
	Cap, Hook	1	8
	Locknut (5/16-18)	1	8

Kit, Sling Knobs with Hardware

1

1

$35.00

Create/add to Wishlist

Create/add to Wishlist

4

1148202

Horn

1

1

$61.00

Create/add to Wishlist

Create/add to Wishlist

5

1152594

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	1
	Washer, Nylon (3/4 x 1/2 x 1/16")	1	4
	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	1
	NLA - Washer (3/8 x 13/16 x 1/16")	1	4
	Screw, Shoulder Hex Socket Head (3/8" x 2-1/4", 5/16-18)	1	2
	Washer, Nylon (3/4 x 1/2 x 1/16")	1	4
	NLA - Locknut (5/16-18)	1	3
	NLA - Washer (3/8 x 13/16 x 1/16")	1	4
	NLA - Locknut (5/16-18)	1	3
	Screw, Shoulder Hex Socket Head (3/8" x 2-1/4", 5/16-18)	1	2

Kit, Boom Hardware

1

1

$16.00

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	One Shoulder Screw (3/8 x 2 1/4, 5/16-18) is used to mount the footplate to the base. See category titled, "Base Assembly - Get-U-Up - GHS350".

Catalog Literature

Parts Books for Patient Transport Lifts and Slings
