EQUIPMENT US Site

1

See Chart

Added to Cart

Chair Seat Depth	Arm Style	Part Number
16-19"	Desk -Right	1068566- NLA
16-19"	Desk -Left	1068567- NLA
16-19"	Full -Right	1068559- NLA
16-19"	Full -Left	1068560- NLA
20"	Desk -Right	1068540- NLA
20"	Desk -Left	1068541- NLA
20"	Full -Right	1068528- NLA
20"	Full -Left	1068529- NLA

Create/add to Wishlist

#1 Fixed Height Arms w/o Pad

N/A

Create/add to Wishlist

2

1102585

NLA - Pad, Arm, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W)

1

N/A

A

Create/add to Wishlist

2

1110818

Kit, Arm Pad w/ Screws, Full Length, Urethane Waterfall, Black (13" L x 2-5/8" W) (Pair)

2

1

$122.00

Create/add to Wishlist

2

1102586

NLA - Pad, Arm, Desk Length, Urethane Waterfall, Black

1

N/A

B

Create/add to Wishlist

2

1110817

Kit, Arm Pad w/ Screws, Desk Length, Urethane Waterfall, Black (9" L x 2-5/8" W) (Pair)

2

1

$122.00

Create/add to Wishlist

3

See Chart

Added to Cart

Chair Seat Depth	Arm Style	Part Number
16-19"	Desk -Right	1068564
16-19"	Desk -Left	1068565- NLA
16-19"	Full -Right	1068490
16-19"	Full -Left	1068491- NLA
20"	Desk -Right	1068414- NLA
20"	Desk -Left	1068415- NLA
20"	Full -Right	1068473- NLA
20"	Full -Left	1068474- NLA

Create/add to Wishlist

#3 Arm Tube - Fixed Height

N/A

Create/add to Wishlist

4

1032244

Grip, Foam Hand (9" L)

1

$2.50

Create/add to Wishlist

5

1025729

Screw, Phillips Pan Head Tap (#8-32 x 3/8")

1

4

$10.00

Create/add to Wishlist

6

1035472

NLA - Guard, Clothing, Desk Length

1

N/A

Create/add to Wishlist

6

1044572

NLA - Guard, Clothing, Full Length (16 - 19" D)

1

N/A

Create/add to Wishlist

6

1044005

NLA - Guard, Clothing, Full Length (20" and Deeper)

1

N/A

Create/add to Wishlist

7

1035065

Cover, Clothing Guard w/ Pocket, FXDESK & ADJFULL/ADJDESK

1

$98.00

Create/add to Wishlist

7

1044588

Cover, Clothing Guard with Pocket Fixed Height Full Length (20" and Deeper)

1

Create/add to Wishlist

8

1055949

Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")

2

1

$13.00

Create/add to Wishlist

8

1094270

NLA - Package, Screw, Phillips Pan Head (#10-32 x 1-1/4")

2

1

N/A

Create/add to Wishlist

9

1065936

Plug, Pivot

1

2

$10.00

Create/add to Wishlist

10

1067734

Plug Button, Black (5/8")

1

2

$10.00

Create/add to Wishlist

11

1025195

Locknut (1/4-20)

1

$9.00

Create/add to Wishlist

12

1068025

Clevis, Pivot

1

$16.00

Create/add to Wishlist

13

1019590

Screw, Socket Button Head (1/4-20 x 1-5/8")

1

$10.00

Create/add to Wishlist

14

1068039

Pin, Pull

1

$12.00

Create/add to Wishlist

15

1068488

Kit, Swingaway Armrest Mounting Hardware

1

$31.00

Note Code	Definition
A	No longer available. Use 1110818 as its replacement.
B	No longer available. Use 1110817 as its replacement.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

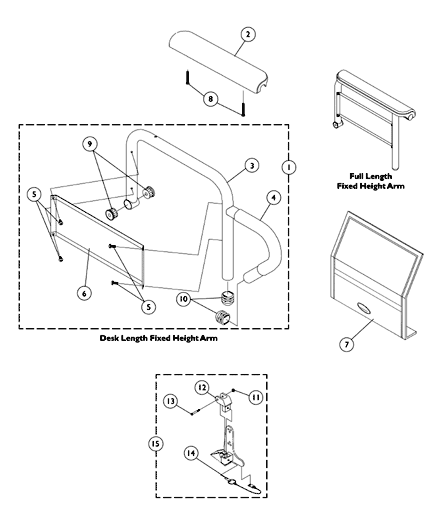

Arms - ASBA & AdjASBA Seat (Fixed Height)
