1

1106226

Kit, Fork Mounting Hardware

1

$19.00

A

Create/add to Wishlist

2

1028550

Locknut (5/8-18)

1

$10.00

Create/add to Wishlist

3

1041444

Washer, Nylon (5/8 x 1-5/16 x 1/8")

1

$10.00

Create/add to Wishlist

4

1106068

Spacer, Stem (5/8 x 1-1/8 x 3/16")

1

$12.00

Create/add to Wishlist

5

40117X006

Bearing (5/8")

1

2

$11.00

Create/add to Wishlist

6

1110717

Ring, Tolerance

1

2

$10.00

Create/add to Wishlist

7

1110683

Fork and Stem, 2-Sided - Right/Left

1

$100.00

Create/add to Wishlist

8

1110708

Kit, Caster Mounting Hardware

1

$19.00

B

Create/add to Wishlist

9

1025734

Locknut (7/16-20)

1

$8.00

Create/add to Wishlist

10

1025724

Washer, Steel (15/32 x 5/8 x 3/64")

1

2

$8.00

Create/add to Wishlist

11

1025726

Screw, Hex Head (7/16-20 x 3-1/4")

1

$8.00

Create/add to Wishlist

12

1110688

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Right	1	1
16	Headtube Assembly with Bearings, Black - Right	1	1
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Right	1	1
16	Headtube Assembly with Bearings, Black - Right	1	1
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Right	1	1
16	Headtube Assembly with Bearings, Black - Right	1	1

Kit, Caster Headtube with Hardware - Right

1

$171.00

C

Create/add to Wishlist

12

1110689

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Left	1	1
16	Headtube Assembly with Bearings, Black - Left	1	1
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Left	1	1
16	Headtube Assembly with Bearings, Black - Left	1	1
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Left	1	1
16	Headtube Assembly with Bearings, Black - Left	1	1

Kit, Caster Headtube with Hardware - Left

1

$171.00

C

Create/add to Wishlist

12

1140293

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Right	1	1
16	Headtube Assembly with Bearings, TRRO/TRBKTS, Black - Right	1	1
	Spacer, Stem (5/8 x 1-1/8 x 3/16")	1	1
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Right	1	1
16	Headtube Assembly with Bearings, TRRO/TRBKTS, Black - Right	1	1
	Spacer, Stem (5/8 x 1-1/8 x 3/16")	1	1

Kit, Caster Headtube with Hardware - Right (TRRO/TRBKTS)

1

$171.00

E ,F

Create/add to Wishlist

12

1140294

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Left	1	1
16	Headtube Assembly with Bearings, TRRO/TRBKTS, Black - Left	1	1
	Spacer, Stem (5/8 x 1-1/8 x 3/16")	1	1
13	Screw, Socket Button Head Cap (3/8-24 x 3/4")	1	4
14	Bushing, Pivot Head Tube	1	2
15	Cap, Head Tube - Left	1	1
16	Headtube Assembly with Bearings, TRRO/TRBKTS, Black - Left	1	1
	Spacer, Stem (5/8 x 1-1/8 x 3/16")	1	1

Kit, Caster Headtube with Hardware - Left (TRRO/TRBKTS)

1

$171.00

E ,F

Create/add to Wishlist

13

1109222

Screw, Socket Button Head Cap (3/8-24 x 3/4")

1

4

$10.00

Create/add to Wishlist

14

1112633

Bushing, Pivot Head Tube

1

2

$37.00

Create/add to Wishlist

15

1113012

Cap, Head Tube - Right

1

$10.00

Create/add to Wishlist

15

1113013

Cap, Head Tube - Left

1

$10.00

Create/add to Wishlist

16

1110694

Headtube Assembly with Bearings, Black - Right

1

$89.00

D

Create/add to Wishlist

16

1110695

Headtube Assembly with Bearings, Black - Left

1

$89.00

D

Create/add to Wishlist

16

1140289

Headtube Assembly with Bearings, TRRO/TRBKTS, Black - Right

1

D ,F

Create/add to Wishlist

16

1140290

Headtube Assembly with Bearings, TRRO/TRBKTS, Black - Left

1

$117.00

D ,F

Create/add to Wishlist

17

1115179

Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2")

1

$79.00

Create/add to Wishlist

17

1122066

Wheel Assembly, Semi-Pneumatic, Urethane, Deep Profile, Grey Tire/Black Hub (6" x 2") (Pair)

2

1

$118.00

Note Code	Definition
A	Includes Items 2-4
B	Includes Items 9-11
C	Includes Items 13-16
D	Includes Items 5 and 6
E	Includes Items 13-16 & Stem Spacer (not shown)
F	Chairs w/ TRRO/TRBKTS option. These headtubes will have a dimple stamped on the outside for identification purposes.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

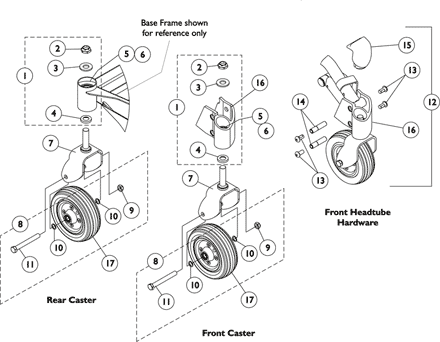

Casters and Forks
