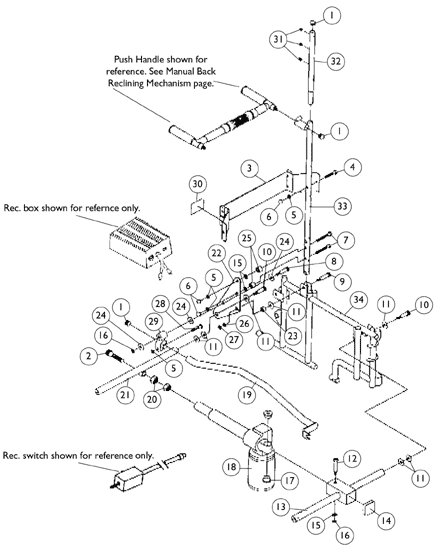

Back - Power Reclining Mechanism

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027095	Plug Button, Black (7/8")	1	6	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	60284X005	NLA - Screw, Socket Head (1/2-20 x 1-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1031658	Bracket, Controller Mounting, Black - Adult (18" W)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1031659	Bracket, Controller Mounting, Black - Narrow Adult (16" W)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1028514	Screw, Hex Head (5/16-24 x 1-1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	50200X000	NLA - Locknut (5/16-24)	1	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1028496	NLA - Nut, Acorn (5/16-24)	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1031891	Screw, Hex Head (5/16-24 x 2")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1031664	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1031886	NLA - Screw, Shoulder Hex Socket Head (1/2 x 1-3/4", 3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	60282X011	NLA - Screw, Shoulder Hex Socket Head (3/8 x 1-1/4", 5/16-18)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1031673	NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	14	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1031665	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1029268	NLA - Rod, Motor Mount, Adult (18" W)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1029270	NLA - Rod, Motor Mount, Narrow, Adult (16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	5	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1028769	Locknut (5/16-18)	1	3	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	50000X346	NLA - Mount, Spacer, Flange	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1024220	NLA - Actuator Motor Assembly, Drive	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1029262	NLA - Extender, Leg	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1026163	NLA - Nut, Hex Jam. (1/2-20)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1029266	NLA - Rod, Rear Actuator, Adult (18" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1029264	NLA - Rod, Rear Actuator, Narrow, Adult (16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1031885	NLA - Plate, Pivot (Black)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1031892	NLA - Spacer	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1012371	Washer, Nylon (3/8 x 7/8 x 1/16")	1	6	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	47183X046	NLA - Spacer (11/32 x 5/8 x 1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	16325X000	NLA - Washer (3/8 x 13/16 x 1/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1028486	Locknut, Low Profile (3/8-16)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1031026	Screw w/ Lug (5/16-24 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	1029255	NLA - Clamp, Bushing	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	1013149	NLA - Label, Caution	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	47447X009	NLA - Screw, Phillips (#8 x 3/8")	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	1037481	NLA - Headrest Extension Tube Assembly, Black	1	2	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	1037481	NLA - Headrest Extension Tube Assembly, Black	1	2	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	1029130	NLA - Tube, Recliner Back, Black - Right	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	1029131	NLA - Tube, Recliner Back, Black - Left	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	See Page	See Footnote				A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	See Frames with Hardware page.
B	Includes items 1 and 31
C	Without Heat-Shrink Tape - After 9/92
D	With Heat Shrink Tape - Before 10/92

Catalog Literature

Parts Books for Action Series Arrow® 4M900/5M900 Ranger X™ M3900 Ranger II™ RM900
