EQUIPMENT US Site

1

1001843

Cap, Head Tube, Black

1

$8.00

Create/add to Wishlist

1

1131189

Package, Head Tube Cap

10

1

$36.00

Create/add to Wishlist

2

1025734

Locknut (7/16-20)

1

$8.00

Create/add to Wishlist

3

40014X044

NLA - Washer, Nylon (7/16 x 1 x 1/8")

1

N/A

Create/add to Wishlist

4

1006049

Bearing (7/16")

1

$8.00

Create/add to Wishlist

5

57768X030

NLA - Sleeve, Aluminum

1

N/A

Create/add to Wishlist

6

1029703

NLA - Bottom Sleeve w/ Bearing

1

N/A

Create/add to Wishlist

7

1025730

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

8

1016289

Washer, Caplugs (15/32" I.D. x 1-3/32" O.D.)

1

$10.00

C

Create/add to Wishlist

8

1028491

NLA - Washer, Caplugs (11/32" I.D. x 1" O.D.)

1

N/A

B

Create/add to Wishlist

9

1016032

Washer, Steel (15/32 x 5/8 x 3/64")

1

2

$10.00

A ,C

Create/add to Wishlist

9

1027794

NLA - Washer, Flat (41/64 x 7/8 x 3/32")

1

2

N/A

A ,B

Create/add to Wishlist

10

1025726

Screw, Hex Head (7/16-20 x 3-1/4")

1

$8.00

C

Create/add to Wishlist

10

1027795

NLA - Axle, Hex Head (5/16-24 x 4")

1

N/A

B

Create/add to Wishlist

11

1027712

NLA - Reducer, Axle

1

N/A

B

Create/add to Wishlist

12

See Chart

Added to Cart

Description	Black Finish	Chrome Finish	Color Finish
Ranger Fork	Note-A 1029705- NLA	N/A	N/A
Shock Absorbing Fork for 8" Wheel	1040339- NLA	Note-B 04540X251- NLA	8881040340- NLA
Fork for 9" Wheel	1040337- NLA	N/A	8881040338- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Standard on Ranger
B	Chrome forks do not come with fork boot, they must be ordered separately.

#12 Caster Forks

N/A

Create/add to Wishlist

13

See Chart

Added to Cart

Description	8 x 1-3/4" Wheel, Semi-Pneumatic	8 x 1-3/4" Wheel, Semi-Pneumatic	8 x 2" Wheel, Full Pneumatic	9x2-3/4" Wheel, Full Pneumatic	9x2-3/4" Wheel, w/Flat Free Insert
Wheel w/Bearings Pair	Before 6/9/97	Note-B 1071666 MSRP: $163.00	N/A	N/A	N/A
Wheel w/Bearings Piece	1006058- NLA	Note-B 1070811 MSRP: $67.00	1002002 MSRP: $122.00	1025400- NLA	1029871- NLA
Replacement Tire	N/A	N/A	40176X034 MSRP: $52.00	1027418- NLA	1028896- NLA
Replacement Tube	N/A	N/A	1034942 MSRP: $15.00	1027417 MSRP: $15.00	N/A
Hub Bearing	1006049 MSRP: $8.00	1006049 MSRP: $8.00	1006049 MSRP: $8.00	N/A	N/A
Hub Spacer	1020592 MSRP: $10.00	1020592 MSRP: $10.00	1020592 MSRP: $10.00	N/A	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Tire comes with insert molded inside.
B	For chairs manufactured before 6/9/97, order the replacement number 1071666.

#13 Caster Wheels

N/A

Create/add to Wishlist

14

1013466

Hub with Bearings Assembly

1

4

Create/add to Wishlist

15

1024426

NLA - Nut, Hex (5/16-24)

1

4

N/A

Create/add to Wishlist

16

1024442

NLA - Washer, Lock (5/16 x 9/16 x 1/16")

1

N/A

Create/add to Wishlist

17

1025399

NLA - Kit, Rim, Outer/Inner Half w/ Hardware (9")

1

N/A

Create/add to Wishlist

18

1028669

NLA - Boot, Fork, Shock Absorbing

1

N/A

Create/add to Wishlist

19

1028490

NLA - Cap, Hub, Grey

1

N/A

Create/add to Wishlist

19

1028488

NLA - Cap, Hub, Teal

1

N/A

Create/add to Wishlist

19

1028489

NLA - Hub Cap, Lavender

1

N/A

Create/add to Wishlist

19

1028835

NLA - Cap, Hub, Black

1

N/A

D

Create/add to Wishlist

20

1015610

Bearing with Grip Ring (5/8")

1

$15.00

Note Code	Definition
A	Used with Accent Hub Caps
B	For 9" Wheel
C	For 8" Wheel
D	For the Red Accent Package

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

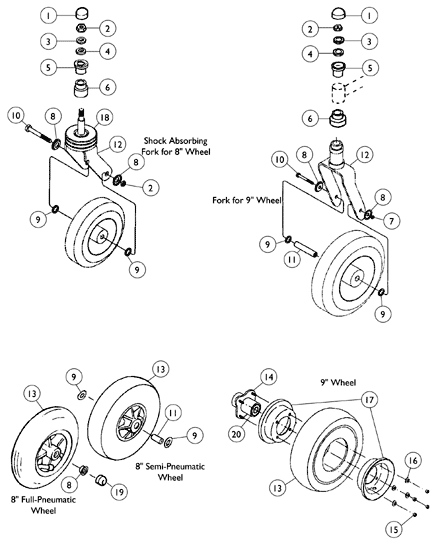

Casters - Front & Forks
