Wheel Lock Assembly

Print this page

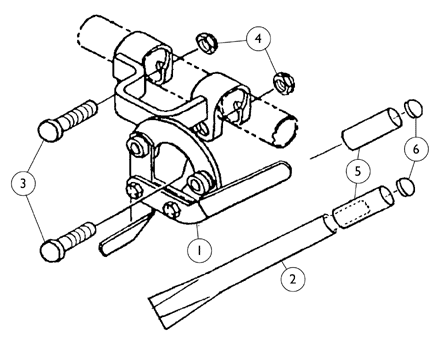

Wheel Lock Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1028585	NLA - Wheel Lock, Less Lever Grip and Tip, Standard Configuration, Pull to Lock, Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1028586	NLA - Wheel Lock, Less Lever Grip and Tip, Standard Configuration, Pull to Lock, Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1043324	NLA - Wheel Lock, Less Lever Grip and Tip, Tall Configuration, Push to Lock, Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1043323	NLA - Wheel Lock, Less Lever Grip and Tip, Tall Configuration, Push to Lock, Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1034932	NLA - Wheel Lock, Less Lever Grip and Tip, 2" Lower Configuration, Push to Lock - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1034933	NLA - Wheel Lock, Less Lever Grip and Tip, 2" Lower Configuration, Push to Lock - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1028782	NLA - Wheel Lock Extension Handle	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1026030	Bolt, Lug (5/16-24 x 1-3/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930330	NLA - Locknut (5/16-24)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027956	NLA - Grip, Lever w/o Tip for Wheel Lock	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027957	NLA - Grip, Lever w/o Tip for Extension Handle	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1030347	NLA - Cap, End, Grey	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1030348	NLA - Cap, End, Teal	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1030349	NLA - Cap, End, Red	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1030350	NLA - Cap, End, Lavender	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	When customers request complete wheel locks, order the basic lock (item 1), lever grip (item 5), and the appropriate grip tip (item 6).

Catalog Literature

Parts Books for Action Series Arrow® 4M900/5M900 Ranger X™ M3900 Ranger II™ RM900
