Model Number and Side	Before 2/6/03	2/6/03-1/25/04 and (2/6/03-3/14/04 For VA Gov't Orders)	1/26/04-5/21/07 and (3/15/04-5/21/07 For VA Gov't Orders)
Storm Arrow	TRUTK (Non-Heavy Duty) Standard	TRUTK (Non-Heavy Duty) Standard	TTHD (Heavy Duty) Stamdard
-Right	Note-E ,E1 See Note	Note-E ,E1 See Note	Note-A ,A1 ,C 1153335- NLA
-Right w/ Wheel Lock	N/A	N/A	Note-B ,B1 1153648- NLA
-Left	Note-E ,E1 See Note	Note-E ,E1 See Note	Note-A ,A1 ,D 1153336- NLA
-Left w/ Wheel Lock	N/A	N/A	Note-B ,B1 1153649- NLA
Storm Arrow	N/A	TTHD (Heavy Duty) Optional	N/A
-Right	N/A	Note-A ,A1 ,C 1153335- NLA	N/A
-Right w/ Wheel Lock	N/A	Note-B ,B1 1153648- NLA	N/A
-Left	N/A	Note-A ,A1 ,D 1153336- NLA	N/A
-Left w/ Wheel Lock	N/A	Note-B ,B1 1153649- NLA	N/A
Storm RX	TRUTK (Non-Heavy Duty) Optional	TRUTK (Non-Heavy Duty) Optional	TRUTK (Heavy Duty) Optional
-Right	Note-E ,E1 See Note	Note-E ,E1 See Note	Note-A ,A1 ,C 1153335- NLA
-Right w/ Wheel Lock	N/A	N/A	Note-B ,B1 1153648- NLA
-Left	Note-E ,E1 See Note	Note-E ,E1 See Note	Note-A ,A1 ,D 1153336- NLA
-Left w/ Wheel Lock	N/A	N/A	Note-B ,B1 1153649- NLA
Torque SP	TRUTK (Non-Heavy Duty) Optional	TRUTK (Non-Heavy Duty) Optional	TRUTK (Heavy Duty) Optional
-Right	Note-E ,E1 See Note	Note-E ,E1 See Note	Note-A ,A1 ,C 1153335- NLA
-Right w/ Wheel Lock	N/A	N/A	Note-B ,B1 1153648- NLA
-Left	Note-E ,E1 See Note	Note-E ,E1 See Note	Note-A ,A1 ,D 1153336- NLA
-Left w/ Wheel Lock	N/A	N/A	Note-B ,B1 1153649- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Kit includes a GB HD Motor, Brake Lever Hardware and (Controller Motor Gasket Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1	stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Motor Gasket Connector was introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
B	Kit includes a GB HD Motor, Brake Lever Hardware, (Controller Motor Gasket Connector kit) and
B1	a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C	For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly. Refer to the Suspension Arm Kits chart
D	For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly. Refer to the Suspension Arm Kits chart
E	Part is no longer available as a service part. The Customer will need to upgrade to Heavy Duty TrueTrack GB Motors. A new upgraded Base Only with MK6i Electronics must be ordered through the Equipment Configurator. If the Customer
E1	has MKIV Electronics on the wheelchair with power seating then a whole new base and power seating is required.

Item #1a New Motor - Date Application Reference Chart

N/A

D

Create/add to Wishlist

1b

See Chart

Added to Cart

Model Number and Side	Before 2/6/03	2/6/03-1/25/04 and (2/6/03-3/14/04 For VA Gov't Orders)	1/26/04-5/21/07 and (3/15/04-5/21/07 For VA Gov't Orders)
Storm Arrow	TRUTK (Non-Heavy Duty) Standard	TRUTK (Non-Heavy Duty) Standard	TTHD (Heavy Duty) Stamdard
-Right WARR RPLMT	N/A	N/A	Note-F 1123235E- NLA
-Right Reconditioned	Note-H ,H1 See Note	Note-H ,H1 See Note	Note-A ,A1 ,C ,E ,G 1153335E MSRP: $1,419.00
-Right WARR RPLMT w/ Wheel Lock	N/A	N/A	Note-B ,B1 ,E ,G 1153648E- NLA
-Left WARR RPLMT	N/A	N/A	Note-F 1123234E- NLA
-Left Reconditioned	Note-H ,H1 See Note	Note-H ,H1 See Note	Note-A ,A1 ,D ,E ,G 1153336E MSRP: $1,419.00
-Left WARR RPLMT w/ Wheel Lock	N/A	N/A	Note-B ,B1 ,E ,G 1153649E- NLA
Storm Arrow	N/A	TTHD (Heavy Duty) Optional	N/A
-Right WARR RPLMT	N/A	Note-F 1123235E- NLA	N/A
-Right Reconditioned	N/A	Note-A ,A1 ,C ,E ,G 1153335E MSRP: $1,419.00	N/A
-Right WARR RPLMT w/ Wheel Lock	N/A	Note-B ,B1 ,E ,G 1153648E- NLA	N/A
-Left WARR RPLMT	N/A	Note-F 1123234E- NLA	N/A
-Left Reconditioned	N/A	Note-A ,A1 ,D ,E ,G 1153336E MSRP: $1,419.00	N/A
-Left WARR RPLMT w/ Wheel Lock	N/A	Note-B ,B1 ,E ,G 1153649E- NLA	N/A
Storm RX	TRUTK (Non-Heavy Duty) Optional	TRUTK (Non-Heavy Duty) Optional	TRUTK (Heavy Duty) Optional
-Right WARR RPLMT	N/A	N/A	Note-F 1123235E- NLA
-Right Reconditioned	Note-H ,H1 See Note	Note-H ,H1 See Note	Note-A ,A1 ,C ,E ,G 1153335E MSRP: $1,419.00
-Right WARR RPLMT w/ Wheel Lock	N/A	N/A	Note-B ,B1 ,E ,G 1153648E- NLA
-Left WARR RPLMT	N/A	N/A	Note-F 1123234E- NLA
-Left Reconditioned	Note-H ,H1 See Note	Note-H ,H1 See Note	Note-A ,A1 ,D ,E ,G 1153336E MSRP: $1,419.00
-Left WARR RPLMT w/ Wheel Lock	N/A	N/A	Note-B ,B1 ,E ,G 1153649E- NLA
Torque SP	TRUTK (Non-Heavy Duty) Optional	TRUTK (Non-Heavy Duty) Optional	TRUTK (Heavy Duty) Optional
-Right WARR RPLMT	N/A	N/A	Note-F 1123235E- NLA
-Right Reconditioned	Note-H ,H1 See Note	Note-H ,H1 See Note	Note-A ,A1 ,C ,E ,G 1153335E MSRP: $1,419.00
-Right WARR RPLMT w/ Wheel Lock	N/A	N/A	Note-B ,B1 ,E ,G 1153648E- NLA
-Left WARR RPLMT	N/A	N/A	Note-F 1123234E- NLA
-Left Reconditioned	Note-H ,H1 See Note	Note-H ,H1 See Note	Note-A ,A1 ,D ,E ,G 1153336E MSRP: $1,419.00
-Left WARR RPLMT w/ Wheel Lock	N/A	N/A	Note-B ,B1 ,E ,G 1153649E- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
B1	a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C	For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly. Refer to the Suspension Arm Kits chart
D	For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly. Refer to the Suspension Arm Kits chart
A	Kit includes a GB HD Motor, Brake Lever Hardware and (Controller Motor Gasket Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1	stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Motor Gasket Connector was introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
E	Additional hardware is not required. Motors include a Controller Gasket Connector Kit and instruction sheets.
F	For use on chairs with serial number series 07H and before.
G	For use on chairs with serial number series 07I and after.
H	Part is no longer available as a service part. The Customer will need to upgrade to Heavy Duty TrueTrack GB Motors. A new upgraded Base Only with MK6i Electronics must be ordered through the Equipment Configurator. If the Customer
B	Kit includes a GB HD Motor, Brake Lever Hardware, (Controller Motor Gasket Connector kit) and
H1	has MKIV Electronics on the wheelchair with power seating then a whole new base and power seating is required.

Item #1b Warranty Replacement or Reconditioned Motor - Date Application Reference Chart

N/A

D

Create/add to Wishlist

2

1078213

NLA - Pin, Alignment, Black

1

N/A

Create/add to Wishlist

3

1018739

Washer (1/4 x 5/8 x 3/32")

1

$10.00

Create/add to Wishlist

4

1078214

Screw, Hex Head w/ Patch (1/4-20 x 1/2")

1

$10.00

Create/add to Wishlist

5

1085633

NLA - Screw, Hex Head w/ Patch (M8 x 1.25 x 45mm)

1

4

N/A

Create/add to Wishlist

6

1105600

NLA - Handle, Brake Release, Black - Right

1

N/A

Create/add to Wishlist

6

1105601

NLA - Handle, Brake Release, Black - Left

1

N/A

Create/add to Wishlist

6

1106532

NLA - Handle, Brake Release, Black - Right (Power Elevating Seat Only)

1

N/A

Create/add to Wishlist

6

1106533

NLA - Handle, Brake Release, Black - Left (Power Elevating Seat Only)

1

N/A

Create/add to Wishlist

7

1078228

NLA - Screw, Slotted Hex Head w/ Patch (#10-32 x 5/16")

1

N/A

Create/add to Wishlist

8

1079247

Washer, Flat (21/64 x 53/64 x 7/64")

1

4

$10.00

Create/add to Wishlist

9

1104872

NLA - Hardware, Motor Mounting - Right

1

N/A

Create/add to Wishlist

9

1104873

NLA - Hardware, Motor Mounting - Left

1

N/A

Create/add to Wishlist

9

1108769

NLA - Hardware, Motor Mounting - Right (Power Elevating Seat Only)

1

N/A

Create/add to Wishlist

9

1108770

NLA - Hardware, Motor Mounting - Left (Power Elevating Seat Only)

1

N/A

Create/add to Wishlist

10

1112955

NLA - Kit, Repair, GB Motor, Anti-Rattle with Instruction Sheet

2

1

N/A

B

Create/add to Wishlist

1144925

Kit, Stand-Off Screw with Lockwasher

1

2

$16.00

Create/add to Wishlist

1112828

Instruction Sheet, GB Motor Anti-Rattle Repair Kit

1

C

Note Code	Definition
A	Includes items 2-8
B	Service Kit for two motors include 2 each hex head nuts, washers, hub keys and O-rings. Individual components are not available.
C	not shown
D	Refer to the "Motor Date Application Reference Chart" for selecting motor
E	Part is no longer available as a service part. The Customer will need to upgrade to Heavy Duty TrueTrack GB Motors. If the Customer
E1	has MKIV Electronics on the wheelchair with power seating then a whole new base and power seating is required.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

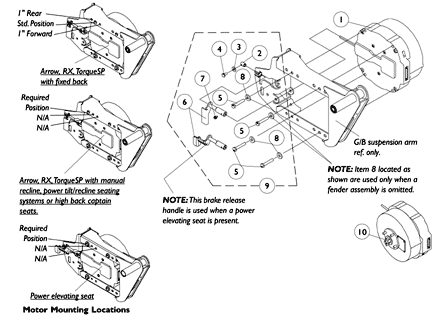

Motors - GB (TrueTrack) Non-Heavy Duty Motors & Hdwr. For MKIV Electronics Only
