Battery and Battery Charger Assembly - 1200, 1300, 1500, 1600, 1800

Print this page

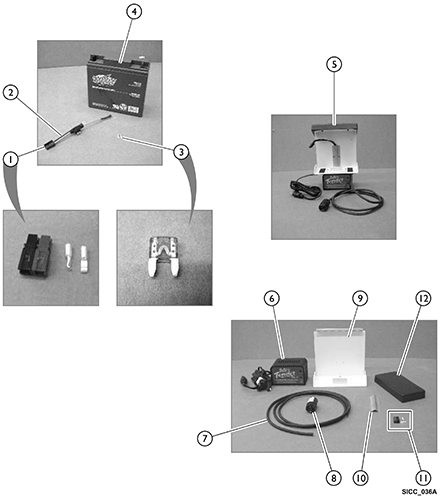

Battery and Battery Charger Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	IHTRP1083	Wire Connectors - Red and Black	1	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	IHTRP1087	NLA - Battery Harness Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	IHTRP1085	NLA - 30 Amp Fuse (For Battery Harness)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	IHTRP1051	NLA - Battery	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	IHTRP1052W	NLA - Battery Charger Assembly, White	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	IHTRP1052A	NLA - Battery Charger Assembly, Almond	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	IHTRP1052C	NLA - Battery Charger Assembly - 220V	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	IHTRP1052D	Battery Charger Only	1	1	$191.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	IHTRP1033	Charger Cord - 6 ft.	1	1	$18.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	IHTRP1033C	Hubble Plug	1	1	$36.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	TRP1002XW	NLA - Battery Housing - White	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	IHTRP1003	NLA - Wire Guard	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	IHTRP1083	Wire Connectors - Red and Black	1	1	$7.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	IHTRP1083A	NLA - Wire Nut, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	IHTRP1083B	NLA - Wire Nut, Red	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	IHTRP1083C	NLA - Contact, Loose (30 Amp)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	IHTRP1011	Battery Cover	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	IHTRP1040	NLA - Grip Tape	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown in Photos.
B	Includes Wire Nut - Red, Wire Nut - Black, and Loose Contact.

Catalog Literature

Parts Books for ICC - Lift IH1200, IH1300, IH1500, IH1600, IH1800, IH1900, 1100 Scale
