Model 1300 - Seat Assembly

Print this page

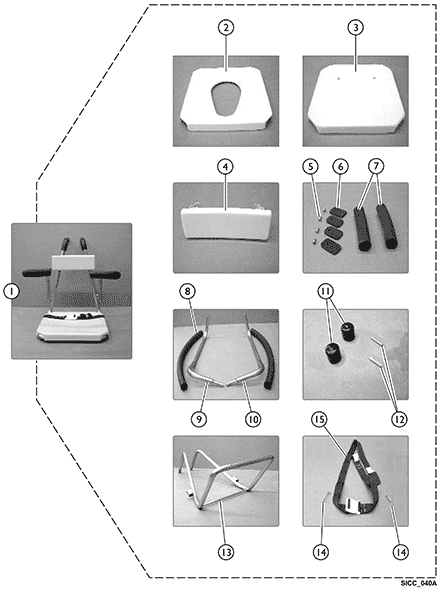

Model 1300 - Seat Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	IHTRV1301	Commode Seat Assembly (Ref. Only)	1	1		A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	TRP1302A	NLA - Commode Seat - Almond	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	TRP1302W	NLA - Commode Seat - White	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	TRP1303A	NLA - Solid Seat - Almond	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	TRP1303W	NLA - Solid Seat - White	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	TRV1305W	NLA - Stretcher Backrest, White	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	TRV1305A	NLA - Stretcher Backrest, Almond	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	IHTRP1316	NLA - Screw, SS (1/4-20 x 1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	IHTRP1317	NLA - Plastic Lock Tab	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	IHTRP1034B	NLA - Tube, Foam (7/8" x 6")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	IHTRP1034A	NLA - Tube, Foam (7/8" x 24")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	IHTRP1304LC	NLA - Left Arm Rest, Seat Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	IHTRP1304RC	NLA - Right Arm Rest, Seat Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	IHTRP1037	NLA - End Cap (7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	IHTRP1308	Roll Pin (3/16" x 1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	IHTRP1315	NLA - Seal Hanger Rod	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	IHTRP9702	NLA - Footman Loop	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	IHPAR9721	Harness Strap	1	1	$40.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify white or almond when ordering.
B	Includes Items 2 thru 16.

Catalog Literature

Parts Books for ICC - Lift IH1200, IH1300, IH1500, IH1600, IH1800, IH1900, 1100 Scale
