Width	Slide Tube	Footplate Size	Right Side	Left Side
14"-15" Wide	Straight (9-7/8")	5-1/4" Footplate	1060432	1060433
16"-20" Wide	Straight (9-7/8")	6-1/4" Footplate	1062572 MSRP: $104.00	1062573 MSRP: $104.00
14"-15" Wide	ALPT Straight Tube (11-7/8") Aluminum	5-1/4" Footplate	1060440- NLA	1060441
16"-20" Wide	ALPT Straight Tube (11-7/8") Aluminum	6-1/4" Footplate	1062578 MSRP: $99.00	1062579 MSRP: $99.00
14"-15" Wide	ALPT Straight Tube (11-7/8") Steel	5-1/4" Footplate	1062758 MSRP: $97.00	1062759 MSRP: $97.00
16"-20" Wide	ALPT Straight Tube (11-7/8") Steel	6-1/4" Footplate	1062760 MSRP: $109.00	1062761 MSRP: $109.00

Create/add to Wishlist

60 Degree and 70 Degree Non-Tapered and Elevating Legrest Assembly

N/A

A

Create/add to Wishlist

1

See Chart

Added to Cart

Width	Slide Tube	Footplate Size	Right	Left
15"-16" Wide	Straight Slide Tube (9-7/8")	4-1/4" Footplate	1060430	1060431
17"-18" Wide	Straight Slide Tube (9-7/8")	5-1/4" Footplate	1060432	1060433
19"-20" Wide	Straight Slide Tube (9-7/8")	6-1/4" Footplate	1062572 MSRP: $104.00	1062573 MSRP: $104.00
15"-16" Wide	ALPT Straight Slide Tube (11-7/8")	4-1/4" Footplate	1062576- NLA	1062577- NLA
17"-18" Wide	ALPT Straight Slide Tube (11-7/8")	5-1/4" Footplate	1060440- NLA	1060441
19"-20" Wide	ALPT Straight Slide Tube (11-7/8")	6-1/4" Footplate	1062578 MSRP: $99.00	1062579 MSRP: $99.00

Create/add to Wishlist

70 Degree Tapered Assembly

N/A

A

Create/add to Wishlist

2

1113572

Footplate, Adjustable Angle, Medium, Black (4-1/4" W x 8" L)

1

$80.00

C

Create/add to Wishlist

2

1113573

Footplate, Adjustable Angle, Large, Black (5-1/4" W x 8" L)

1

$79.00

C

Create/add to Wishlist

2

1113574

Footplate, Adjustable Angle, Extra Large, Black (6-1/4" W x 8" L)

1

$80.00

C

Create/add to Wishlist

3

1058517

Clamp, Footplate

1

$13.50

B

Create/add to Wishlist

4

1120384

NLA - Tube, Pivot/Slide, Straight - Alum. (9-7/8" L)

1

N/A

Create/add to Wishlist

4

1120385

Tube, Pivot/Slide, Straight - Black (11-7/8" L)

1

$31.00

Create/add to Wishlist

5

1048816

Screw, Nylon Adjustment (1/2-13 x 7/8")

1

$10.00

Create/add to Wishlist

6

1052102

Hinge, Footplate - Right

1

$57.00

Create/add to Wishlist

6

1052103

Hinge, Footplate - Left

1

$57.00

Create/add to Wishlist

7

1029545

Screw, Socket Flat Head (1/4-20 x 3/4")

1

2

$9.20

B

Create/add to Wishlist

8

1082686

Nut, Barrel, Hex Head (1/4-20 x 11/16")

1

$9.20

B

Create/add to Wishlist

9

7930321

NLA Package, Screw, Socket Button Head (1/4-20 x 1-7/8")

25

1

N/A

Create/add to Wishlist

10

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

2

$8.00

Create/add to Wishlist

11

1026900

Washer (1/4 x 23/32 x 1/16")

1

$1.20

Create/add to Wishlist

12

7930313

Package, Washer, Nylon (5/16 x 7/8 x 1/8")

25

1

$44.00

Create/add to Wishlist

13

1026907

Washer (1/4 x 1/2 x 1/16")

1

$7.20

Create/add to Wishlist

14

7930333

Locknut (1/4-20)

25

1

$44.00

Note Code	Definition
A	Includes Items 2 thru 14.
B	Items 3, 7 and 8 must be ordered together for chairs manufactured before 8/10/99 due to a hardware change
C	This footplate was revised 9/2/2008 with rounder corners and accessory holes changed from 8 to 4. Recommended to replace footplate in pairs to match sides.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

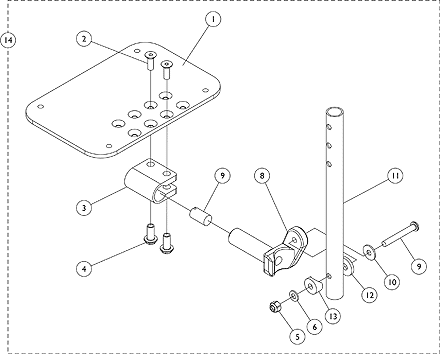

Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates
