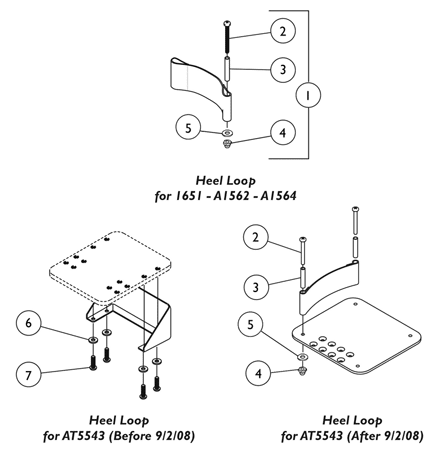

Front Riggings - Accessories - Heel Loop Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1035931

Kit, Heel Loop Attaching Hardware (Pair)

$27.00

Create/add to Wishlist

1028516

Washer, Steel (3/16 x 7/16 x 1/16")

$3.00

Create/add to Wishlist

1026115

NLA - Screw, Phillips Pan Head (#10-32 x 5/16")

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width/Type	Heel Loop Single	Heel Loop Pair	Attaching Hardware Pair
14" Special 60 Degree, 70 Degree Non-Tapered	1025234- NLA	1035905 MSRP: $60.00	1035931 MSRP: $27.00
16" Medium 60 Degree, 70 Degree Non-Tapered	1017621 MSRP: $31.00	1035917- NLA	1035931 MSRP: $27.00
18-20" Large 60 Degree, 70 Degree Non-Tapered	1027000 MSRP: $31.00	1035929 MSRP: $60.00	1035931 MSRP: $27.00
14-16" Special 70 Degree Tapered	1025234- NLA	1035905 MSRP: $60.00	1035931 MSRP: $27.00
18" Medium 70 Degree Tapered	1017621 MSRP: $31.00	1035917- NLA	1035931 MSRP: $27.00
20" Large 70 Degree Tapered	1027000 MSRP: $31.00	1035929 MSRP: $60.00	1035931 MSRP: $27.00

Create/add to Wishlist

Accessories - Heel Loops - 1651 Composite Footplates

N/A

See Chart

Added to Cart

Chair Width/Type	Heel Loop Single	Heel Loop Pair	Attaching Hardware Pair
14" Small 60 Degree, 70 Degree Non-Tapered	1030958- NLA	1036101	1035931 MSRP: $27.00
16-17" Medium 60 Degree, 70 Degree Non-Tapered	99816X024	1069037 MSRP: $27.00	1035931 MSRP: $27.00
18-20" Large 60 Degree, 70 Degree Non-Tapered	99816X024	1068624 MSRP: $19.00	1035931 MSRP: $27.00
16-18" Medium 70 Degree Tapered	1017621 MSRP: $31.00	1035917- NLA	1035931 MSRP: $27.00
20" Large 70 Degree Tapered	1027000 MSRP: $31.00	1035929 MSRP: $60.00	1035931 MSRP: $27.00

Create/add to Wishlist

Heel Loops - A5543 Adjustable Angle Footplates

N/A

See Chart

Added to Cart

Chair Width/Type	Heel Loop Single	Heel Loop Pair	Attaching Hardware Pair
14" Small 60 Degree, 70 Degree Non-Tapered	1017621 MSRP: $31.00	1035917- NLA	1035931 MSRP: $27.00
16-20" Large 60 Degree, 70 Degree Non-Tapered	1027000 MSRP: $31.00	1035929 MSRP: $60.00	1035931 MSRP: $27.00
16-18" Medium 70 Degree Tapered	1017621 MSRP: $31.00	1035917- NLA	1035931 MSRP: $27.00
20" Large 70 Degree Tapered	1027000 MSRP: $31.00	1035929 MSRP: $60.00	1035931 MSRP: $27.00

Create/add to Wishlist

Heel Loops - A1562 Aluminum Footplates

N/A

See Chart

Added to Cart

Chair Width/Type		Heel Loop Single #		Heel Loop Pair #		Attaching Hardware Pair
16-20" Large 60 Degree, 70 Degree Non-Tapered		1027000 MSRP: $31.00		1035929 MSRP: $60.00		1035931 MSRP: $27.00

Create/add to Wishlist

Heel Loops - A1564 Extra Large Footplates

N/A

Assembly Part Notes

Note Code	Definition
A	Not Shown. Includes items 2-5

Catalog Literature

Parts Books for Patriot® SL
